1/2 inch stainless steel pn63 mini ball valve fxm female to male npt ball valve
FOB Price: US $3.7 / Piece Min. Order: 100 Pieces
Key word:
Classification:
Mini Ball Valve
Hotline:
1/2 inch stainless steel pn63 mini ball valve fxm female to male npt ball valve
Top
1/2 inch stainless steel pn63 mini ball valve fxm female to male npt ball valve
Stainless steel mini ball valve, mainly used for high-clean pipe connection, dedicated for export, not only can easily control the pipe switch, flow, but also has an aesthetic effect
Features:
1. Regular operation, quick opening and closing, and light weight.
2. The liquid resistance is small.
3. Simple structure, relatively small volume, light weight and convenient maintenance.
4. Good sealing performance.
5. The flow direction of the media can be arbitrary regardless of the installation direction.
6. No vibration, low noise.
Uses: These valves are mainly used to open and close the flow of media in pipes and equipment.

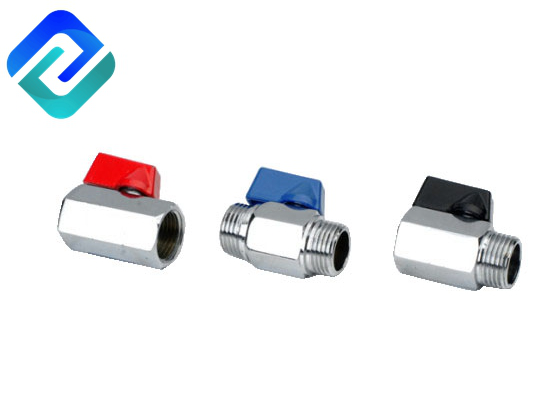

1) F/M mini ball valve
Features:
1000PSI/PN63
Reduce Port
Investment Casting
Blow-out proof stem
External polished
Max temperature: -25℃ to 180 ℃
PTFE seats & seals
Thread:ASME B1 .20.1 BS21.DIN2999/259, ISO228-1, JIS B 0203, ISO7/1
Inspection Testing: API598, EN12266

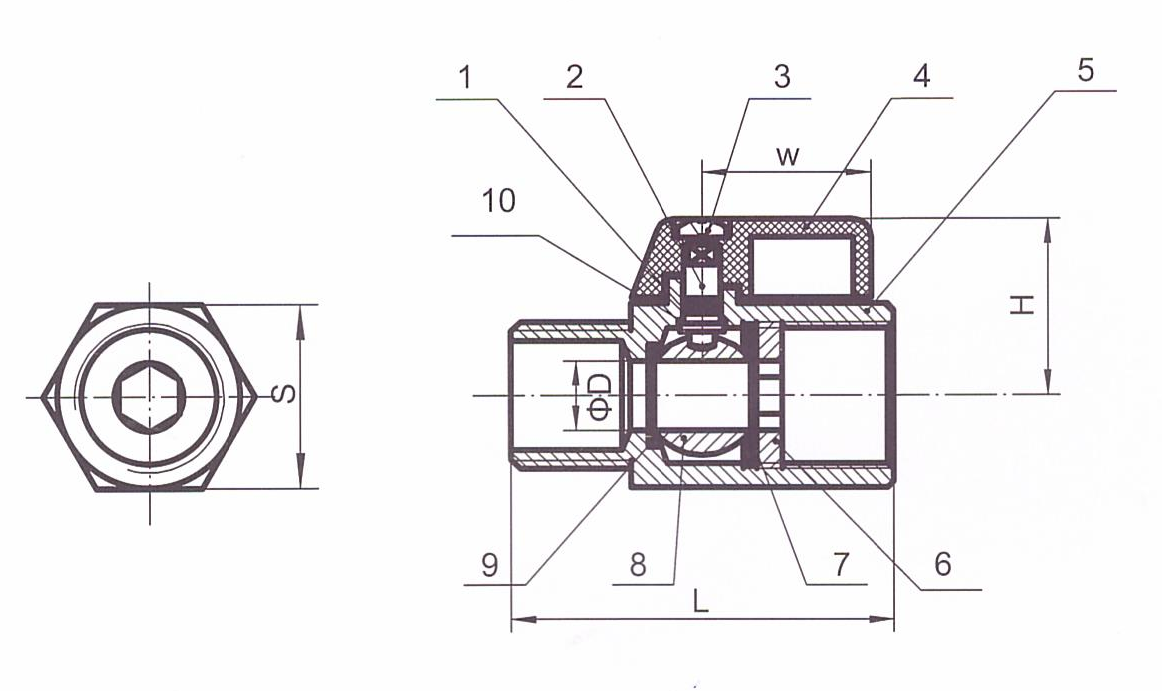

Material List:
|
ITEM |
DESIGNATION |
QTY |
MATERIAL |
|
1 |
O-RING |
2 |
VITON |
|
2 |
STEM |
1 |
304/316 |
|
3 |
BOLT |
1 |
304 |
|
4 |
LEVER |
1 |
ALUMINUM ALLOY |
|
5 |
BODY |
1 |
CF8/CF8M |
|
6 |
CAP |
1 |
CF8/CF8M |
|
7 |
BALL SEAT(A) |
1 |
PTFE |
|
8 |
BALL |
1 |
304/316 |
|
9 |
BALL SEAT(B) |
1 |
PTFE |
|
10 |
THRUST WASHER |
1 |
PTFE |
Dimensions(mm):
|
|
1/4’’ |
3/8’’ |
1/2’’ |
3/4’’ |
1’’ |
|
D |
8 |
8 |
9.2 |
12.5 |
15 |
|
L |
39 |
41 |
46 |
55 |
65 |
|
H |
26.5 |
26.5 |
28.3 |
31.5 |
34 |
|
W |
22.8 |
22.8 |
22.8 |
22.8 |
22.8 |
|
S |
21 |
21 |
24.5 |
31 |
38 |
Note:If the thread is taper type(NPT/BSPT),the nominal diameter is 7MM.
1) F/F mini ball valve
Features:
1000PSI/PN63
Reduce Port
Investment Casting
Blow-out Proof Stem
External Polished
Max Temperature :-25℃ to 180 ℃
PTFE Seats & Seals
Thread: ASME B1.20.1 BS21.DIN2999/259, ISO228-1, JIS B 0203, ISO7/1
Inspection Testing: API598, EN12266
Material List:
|
ITEM |
DESIGNATION |
QTY |
MATERIAL |
|
1 |
O-RING |
2 |
VITON |
|
2 |
STEM |
1 |
304/316 |
|
3 |
BOLT |
1 |
304 |
|
4 |
LEVER |
1 |
ALUMINUM ALLOY |
|
5 |
BODY |
1 |
CF8/CF8M |
|
6 |
CAP |
1 |
CF8/CF8M |
|
7 |
BALL SEAT(A) |
1 |
PTFE |
|
8 |
BALL |
1 |
304/316 |
|
9 |
BALL SEAT(B) |
1 |
PTFE |
|
10 |
THRUST WASHER |
1 |
PTFE |
Dimensions(mm):
|
|
1/4’’ |
3/8’’ |
1/2’’ |
3/4’’ |
1’’ |
|
D |
8 |
8 |
9.2 |
12.5 |
15 |
|
L |
39 |
41 |
46 |
55 |
65 |
|
H |
26.5 |
26.5 |
28.3 |
31.5 |
34 |
|
W |
22.8 |
22.8 |
22.8 |
22.8 |
22.8 |
|
S |
21 |
21 |
24.5 |
31 |
38 |
Note:If the thread is taper type(NPT/BSPT),the nominal diameter is 7MM.
