Stainless steeel 3PC ball valve, with thread end
Key word:
Classification:
3-PC Ball Valve
Hotline:
Stainless steeel 3PC ball valve, with thread end
Top
Stainless steeel 3PC ball valve, with thread end
Investment castings for body and cap
Internal entry blow-out proof stem
Pressure Rating:1000PSI(PN63)
Thread End: ANSI B2.1,BS21,ISO7/1
Working Temperature:-25℃~+180℃
Material:CF8M,CF8,CF3M,WCB

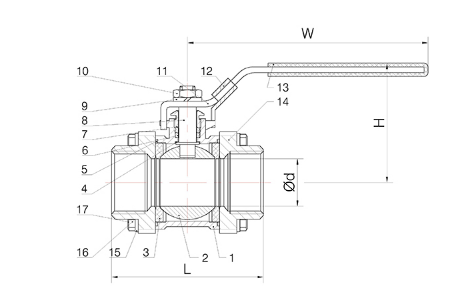

| ITEM | PART | MATERIAL | QTY | |||
| 1 | BODY | A216-WCB | A351-CF8 | A351-CF8M | 1 | |
| 2 | BALL | 304 | 304 | 316 | 1 | |
| 3 | SEAT | PTFE/RPTFE | 2 | |||
| 4 | CAP | A216-WCB | A351-CF8 | A351-CF8M | 1 | |
| 5 | STEM | 304 | 304 | 304 | 2 | |
| 6 | THRUST WASHER | PTFE | 1 | |||
| 7 | O-RING | VITON | 1 | |||
| 8 | PACKING | PTFE | 1 | |||
| 9 | GLAND NUT | 304 | 1 | |||
| 10 | STOPPER NUT | 304 | 1 | |||
| 11 | PLATE | 304 | 1 | |||
| 12 | HANDLE | 304 | 1 | |||
| 13 | LOCK | 304 | 1 | |||
| 14 | HANDLE COVER | PLASTIC | 2 | |||
| 15 | NUT | 304 | 304 | 304 | 4(6) | |
| 16 | SPRING WASHER | 304 | 4(6) | |||
| 17 | BOLT | 304 | 304 | 304 | 4(6) | |
| 18 | STOP PIN | 304 | 304 | 304 | 1 | |
| SIZE | Φd | L | H | W | H1 | |
| DN6 | 1/4’’ | 12.5 | 52 | 60 | 140 | 30 |
| DN10 | 3/8’’ | 12.5 | 52 | 60 | 140 | 30 |
| DN15 | 1/2’’ | 15 | 62 | 68 | 140 | 36.5 |
| DN20 | 3/4’’ | 20 | 72 | 72 | 140 | 40.5 |
| DN25 | 1’’ | 25 | 79 | 86 | 160 | 48.5 |
| DN32 | 1-1/4’’ | 32 | 94 | 94 | 160 | 53 |
| DN40 | 1-1/2’’ | 38 | 103 | 101 | 185 | 61.5 |
| DN50 | 2’’ | 50 | 126 | 110 | 185 | 70.5 |
| DN65 | 2-1/2’’ | 65 | 158 | 143 | 230 | 95.5 |
| DN80 | 3’’ | 76 | 179 | 157 | 230 | 109 |
| DN100 | 4’’ | 94 | 213 | 182 | 320 | 131 |
