3-Way Stainless Steel Ball Valve L/T Port 1/4''-4''

The three-way ball valve is used for parallel connection of corrosive or non-corrosive liquids, gases, powders and mixed media at temperatures between minus 46 ° C and 200 ° C.

Key word:

three way ball valve ball valve stainless steel three way ball valve

Classification:

3-WAY Ball Valve

Hotline:

+86 13283221383

Inquiry now

3-Way Stainless Steel Ball Valve L/T Port 1/4''-4''

Top

3-Way Stainless Steel Ball Valve L/T Port 1/4''-4''

The three-way ball valve is used for parallel connection of corrosive or non-corrosive liquids, gases, powders and mixed media at temperatures between minus 46 ° C and 200 ° C. During the opening and closing process, the smooth flow path reduces pressure loss and is easy to operate. Easy to maintain; manual, pneumatic and electric control.

Three-way ball valve structure features:

1, the valve seat can be designed into four floating balls and fixed ball, the flow is stable, and the seal is reliable;

2. The structural design is side-mounted and top-mounted, two-way sealing design, flow switching, no splitting;

3, anti-flying valve stem design;

4, antistatic design;

5, two position (opening and closing position) lock design.

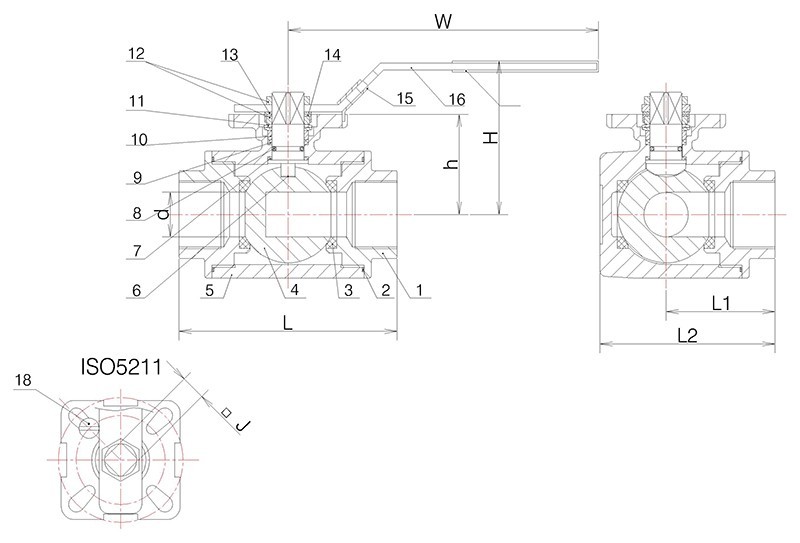

Size of stainless steel three way ball valve

SIZE		Φd	L	H	W	h	ISO5211	N.M	KGS
DN6	1/4''		75	66	130	36.8	F03/F04	8	0.71
DN10	3/8''	11	75	66	130	36.8	F03/F04	8	0.68
DN15	1/2''	12	75	66	130	36.8	F03/F04	8	0.64
DN20	3/4''	15	85	72	161	41.2	F04/F05	9	0.95
DN25	1''	20	100	77	161	46.5	F04/F05	15	1.40
DN32	1-1/4''	25	122	92	203	56	F05/F07	20	2.90
DN40	1-1/2''	32	131	96	203	60	F05/F07	30	3.65
DN50	2''	40	158	107	203	70.5	F05/F07	45	6.30
DN65	2-1/2''	49	178	135	254	95.5	F07/F10	60	8.96
DN80	3''	60	202	147	254	106	F07/F10	90	13.10
DN100	4''	75	246	160	310	119	F07/F10	120	22.11

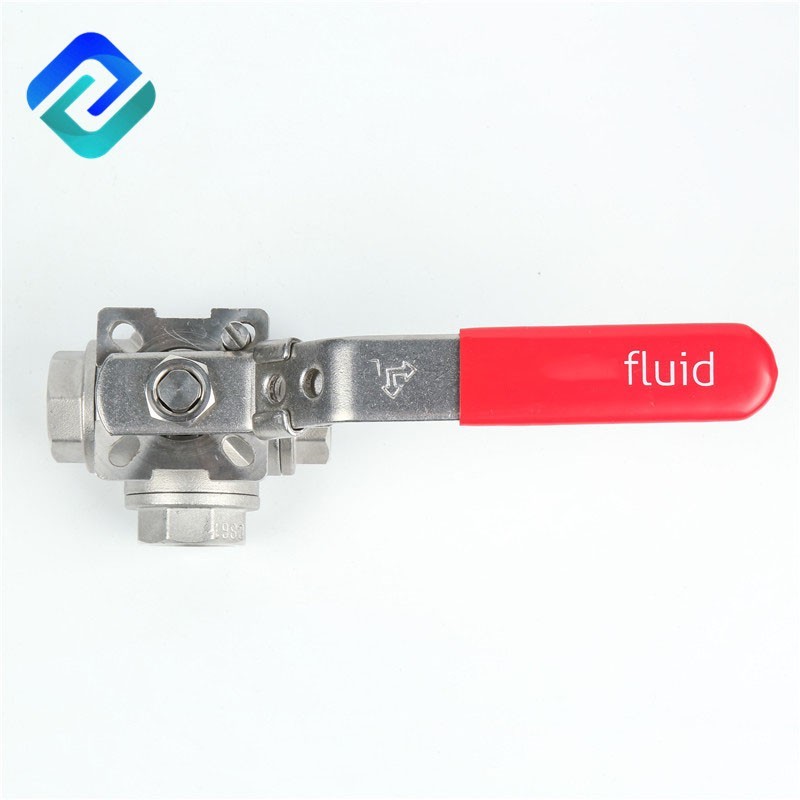

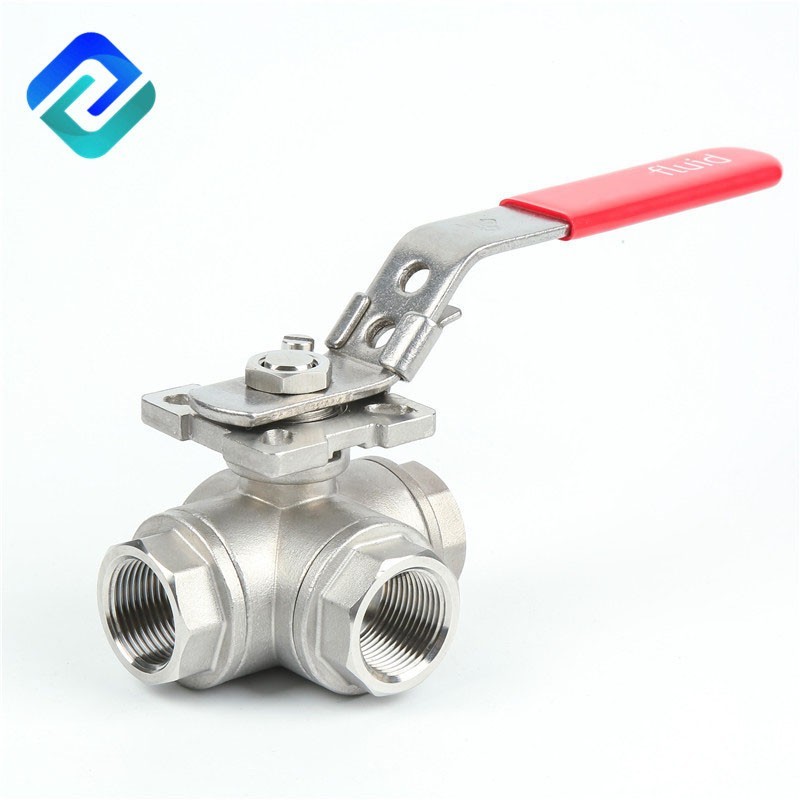

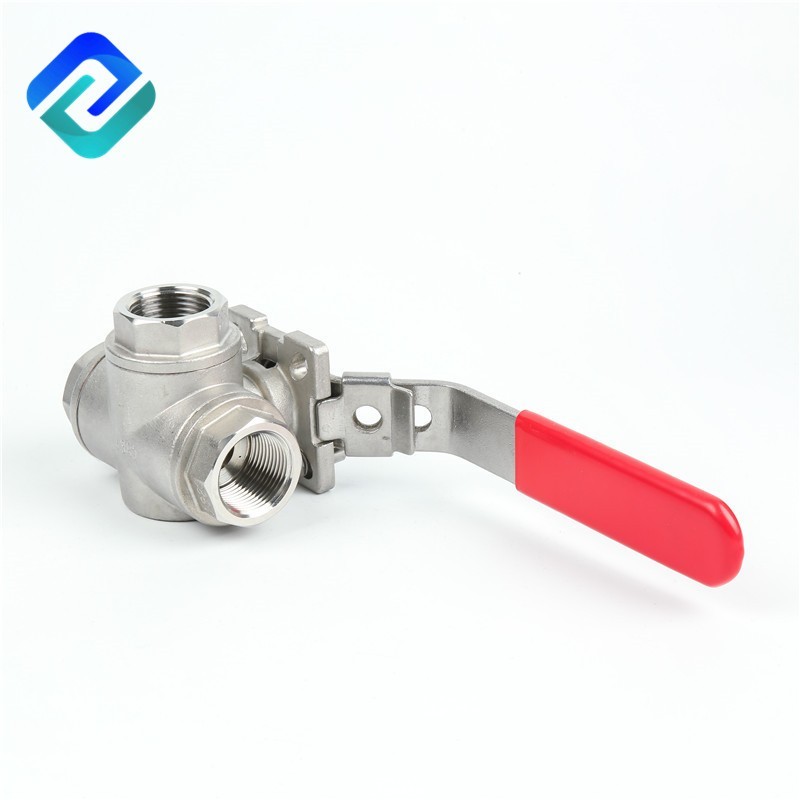

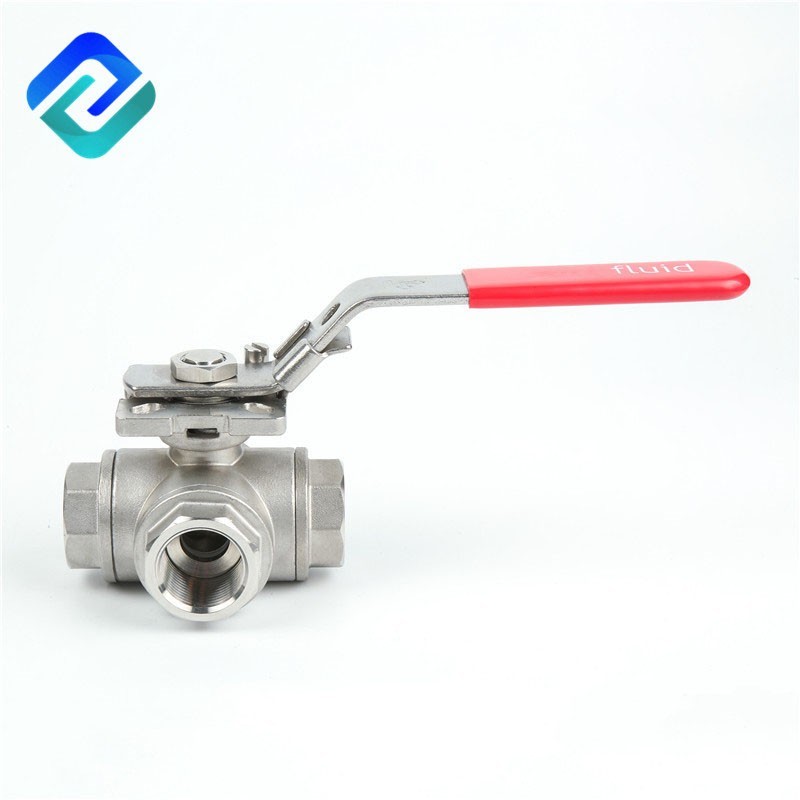

More Pictures of this three way ball valve

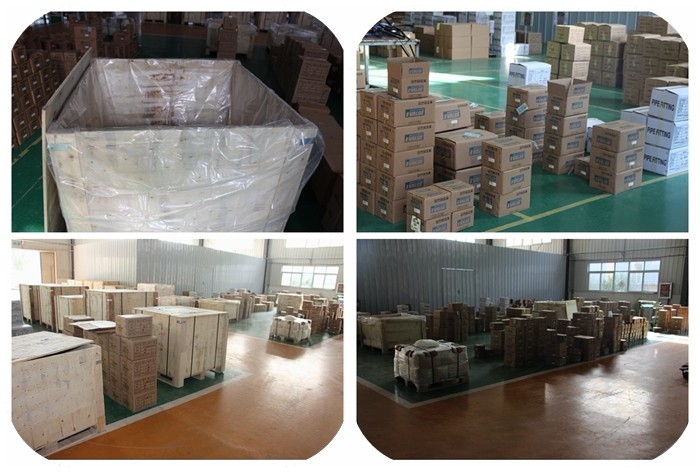

Packing & Delivery

Three-way ball valve, mainly L-type three-way ball valve and T-type three-way ball valve, L-type three-way ball valve, mainly for distribution, the principle is "one in one out", one leading to B or A, leading to C That is, only two orthogonal pipes can be connected to each other. The T-type three-way valve is divided into two types: confluence type and split type. The T-type structure is more complicated. The T-type three-way ball valve has four valve seats, and the L-type ball valve is a double seat valve. Confluent T-type three-way ball valves are two-in-one. This configuration is generally suitable for operating conditions mixed in two different media. For example, if the inlet pressure is different or less than the outlet pressure, the valve needs to be installed before the check valve. The split T-type three-way ball valve is one in and two out. This structure is the most commonly used three types of valves, and it is used more. Therefore, manufacturers of three-way ball valves will have more inventory.

3-way reduced port mounting port stainless steel ball valve 1000PSI PN63 screw end

3 way stainless steel ball valve t port
