2-PC Full Port Ball Valve Stainless Steel Ball Valve 1/2''-4''

Top

2-PC Full Port Ball Valve Stainless Steel Ball Valve 1/2''-4''

The difference between a one-piece and two-piece stainless steel ball valve:

A one-piece stainless steel ball valve is a manual valve.

The structural design is monolithic,

The ball is stabilized by a plug.

This can be convenient for maintenance.

And the diameter of the ball valve is also small.

The ball is put in from the side of the valve body,

After the valve seat is screwed in, press the ball again.

Some non-standard one-piece ball valves have a short structure,

So the best way to distinguish is the structure of the valve body.

The two-piece stainless steel ball valve is composed of two left and right valve body bolts. When fixed, two valve bodies are used to clamp the ball valve. The maintenance is relatively difficult. The most important thing is to see how the middle screw is tight. It is related to whether the seal is tight. In addition, it is mainly used in normal pressure and high pressure environments. For non-standard type nominal diameters below DN50, it is also a two-piece valve.

Feature of 2-PC Full Port Ball Valve Stainless Steel Ball Valve 1/2''-4''

CF8M/CF8
1000PSI FULL PORT
Bi-directional flow
Lighter than QF204 in weight
Max temperature -25℃ to 180℃
Thread ends:ANSIB2.1, BS 21,DIN259/2999,ISO228-1,JIS B 0203,ISO7/1
Main market: Italy

Drawings of 2-PC Full Port Ball Valve Stainless Steel Ball Valve 1/2''-4''

Material of 2-PC Full Port Ball Valve Stainless Steel Ball Valve 1/2''-4''

ITEM	NAME	QTY	MATERIAL
1	Plastic Cover	1	Plastic
2	Handle	1	304
3	Gland Nut	1	304
4	Stem Nut	1	304
5	Spring Washer	1	304
6	Stem Packing	1	PTFE
7	Thrust Washer	1	PTFE
8	Joing Gasket	1	PTFE
9	CAP	1	CF8M/CF8
10	Body	1	CF8M/CF8
11	Ball Seat	2	RPTFE
12	Ball	1	CF8M/CF8
13	Stem	1	316/304

Size of 2-PC Full Port Ball Valve Stainless Steel Ball Valve 1/2''-4''

Size	L	D	H	w	S
1/2''	50	15	48	85	24.6
3/4''	56	20	59	100	30
1''	68	25	70	105	37.6
1-1/4''	83	32	78	120	45.6
1-1/2''	90	38	82	120	52.5
2''	111	50	95	160	65.6
2-1/2''	147	65	126	252
3''	173	76	138	252
4''	222	94	158	283

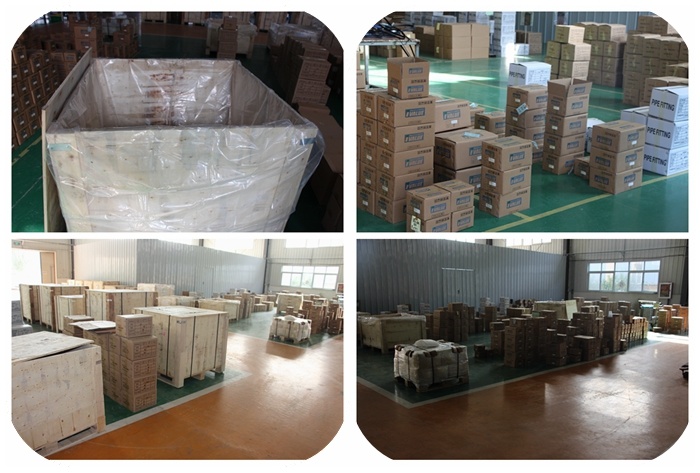

Package OF 2-PC Ball Valve

2PC Stainless Steel Ball Valve Full Port,Screw Ends

stainless steel ball valves and fittings
