Chinese factory supplier mini pn16 dn32 1/4 turn 1 pc single piece ball valve
DESCRIPTION:
1 pc single piece ball valve is also called a one-stage ball valve. The valve body is made of stainless steel such as 304 and 316. It is made of our factory's silica sol precision casting valve body. The introduction of foreign advanced processing technology, reasonable structure and beautiful appearance. The valve seat adopts elastic sealing structure, which is easy to seal and reliable.
Wide range of applications, from small to a few millimeters, up to a few meters, from high vacuum to high pressure can be applied.Ball valves have been widely used in petroleum, chemical, power generation, paper, atomic energy, aviation, rocket and other departments, as well as people's daily lives.

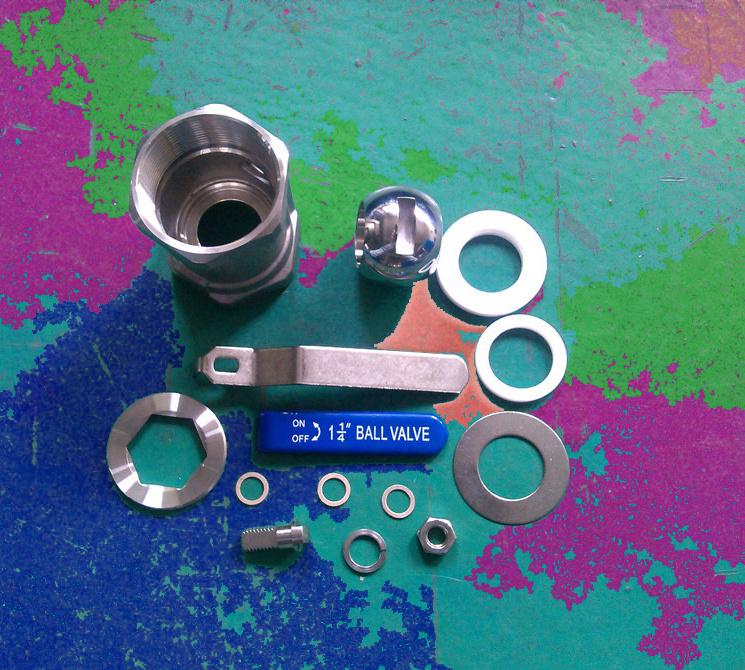

Composition of stainless steel 1 pc single piece ball valve:
Drawings of 1 PC ball valve:
Size of one piece ball valve:
|
SIZE |
Φ d |
L |
H |
W |
N.M |
KGS |
|
|
DN6 |
1/4” |
6 |
41 |
32 |
68 |
4 |
0.06 |
|
DN10 |
3/8” |
8 |
45 |
33 |
68 |
4 |
0.09 |
|
DN15 |
1/2” |
10 |
57 |
41 |
94 |
6 |
0.17 |
|
DN20 |
3/4” |
11.5 |
59 |
45 |
95 |
7 |
0.23 |
|
DN25 |
1” |
16 |
72 |
48 |
96 |
8 |
0.37 |
|
DN32 |
1-1/4” |
20 |
77 |
58 |
107 |
10 |
0.55 |
|
DN40 |
1-1/2” |
26 |
84 |
66 |
127 |
14 |
0.88 |
|
DN50 |
2” |
32 |
100 |
75 |
131 |
16 |
1.31 |
|
DN65 |
2-1/2” |
38 |
111 |
86 |
171 |
25 |
2.15 |
|
DN80 |
3” |
50 |
132 |
86 |
172 |
39 |
3.42 |
|
DN100 |
4” |
64 |
180 |
122.5 |
224 |
47 |
5.85 |
Features:
Pipe thread in accordance with ANSI B2.1,BS 21:1973,DIN 259/2999,ISO228
Pressure rating :800psi(63BAR)
Investment casting boday and cap
Blow-out proof stem
Reduce port
Advantage:
The valve body is precision cast and the surface is clearly written.
Thickened valve body, which can increase the bearing pressure by one level under the same pressure condition, which is safer and more secure.
Exquisite workmanship, attention to detail, multiple inspection gates
Compressive and corrosion resistant
