High Quality 2-PC Full Port Stainless Steel Ball Valves Flanged End
High Quality 2-PC Full Port Stainless Steel Ball Valves Flanged End only need to be rotated 90 degrees of operation and a small turning torque to close tight.The ball valve body may be integral or combined. This type of valve should generally be installed horizontally in the pipeline.
Stainless steel ball valve is used on various pipelines of Class150~Class1500, PN16~PN100, JIS10K~JIS20K. It is used to cut off or connect the medium in the pipeline. Different materials can be used for water, steam, oil and liquefaction. Gas, natural gas, coal gas, nitric acid, acetic acid, oxidizing medium, urea, etc.

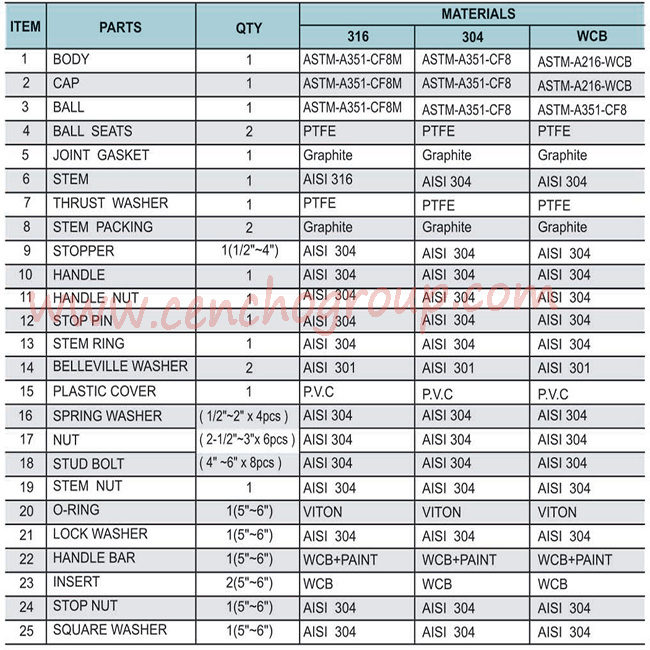

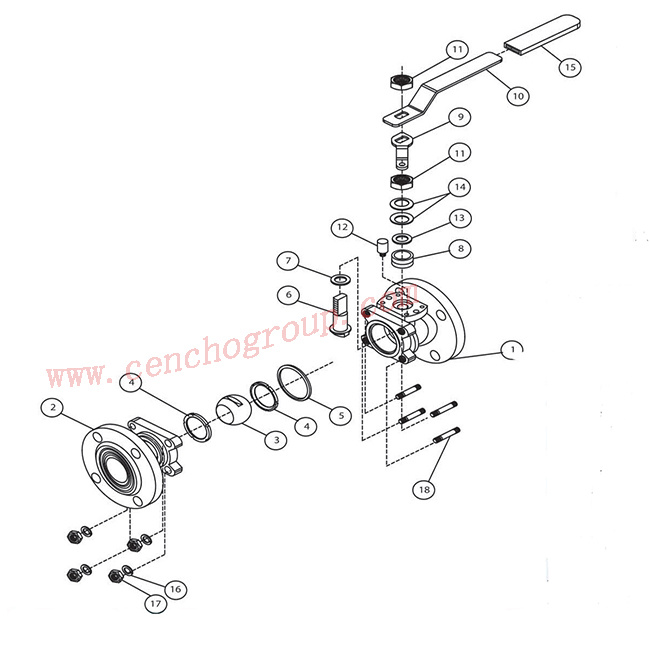

Composition of High Quality 2-PC Full Port Stainless Steel Ball Valves Flanged End :
Flange:ANSI B16.5 Class 150
Face to Face :ANSI B16.10
Pressure rating :150LBS
Investment casting body and cap
Blow-out proof stem
ISO 5211 mounting pad
5”&6”with ISO 5211 direct mounting pad
1. The fluid resistance is small, and the full-bore ball valve has substantially no flow resistance.
2. The structure is simple, small in size and light in weight.
3. Tight and reliable. It has two sealing faces, and the sealing surface material of the ball valve is widely used in various plastics, and has good sealing performance and can achieve complete sealing. It has also been widely used in vacuum systems.
4. The operation is convenient, the opening and closing is rapid, and the rotation is 90° from full opening to full closing, which is convenient for long-distance control.
5. The maintenance is convenient, the ball valve has a simple structure, and the sealing ring is generally movable, and the disassembly and replacement are relatively convenient.
6. When fully open or fully closed, the sealing surface of the ball and the valve seat is isolated from the medium, and the medium does not cause erosion of the sealing surface of the valve.
7. Wide range of applications, from small to a few millimeters, up to a few meters, from high vacuum to high pressure can be applied.
8. Since the ball valve is wiping during opening and closing, it can be used in a medium with suspended solid particles.
