4 WAY Stainless Steel Sanitary Mounting Pad Full Port Ball Valve
Sanitary stainless steel ball valve is also called as hygienic ball valve which is opened by turning handles attached to balls inside the valves. The ball has a hole or port through the middle. When the port is in line with both ends of the valve, flow will occur.
Key word:
Classification:
Stainless Steel Ball Valve
Hotline:
4 WAY Stainless Steel Sanitary Mounting Pad Full Port Ball Valve
Top
Sanitary stainless steel ball valve is also called as hygienic ball valve which is opened by turning handles attached to balls inside the valves. The ball has a hole or port through the middle. When the port is in line with both ends of the valve, flow will occur. When the valve is closed, the hole is perpendicular to the ends of the valve, and flow is blocked. A ball valve is durable and usually work to achieve perfect shutoff even after years of disuse.
Sanitary stainless steel ball valves are made of high-quality stainless steel, which can meet the special requirements of various media in food and biopharmaceutical fields. The smooth, seamless and automatic emptying of handicrafts is also very suitable for steam cleaning.
Sanitary stainless steel ball valve has many advantages such as removable connection, simple structure, and easy maintenance.

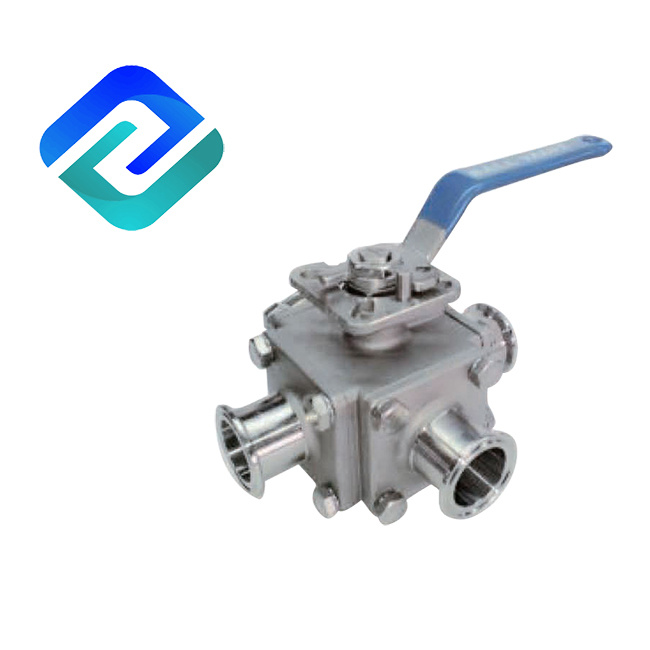

Main Picture：
Clamp end:BS 4825-3,3A standard
Butt weld end:3A standard
Pressure rating:1000 PSI(63BAR)
Investment casting body and cap
Blow Out Proof Stem
ISO 5211 direct mounting cap
Lug body
T-port/2L-port
Inside port:Ra<=0.1a
Clamp end/Butt weld end
PTFE Seat and Seal, suitable for High Heat and Chemical Applications
Sizes Start from 1/4" up to 4"

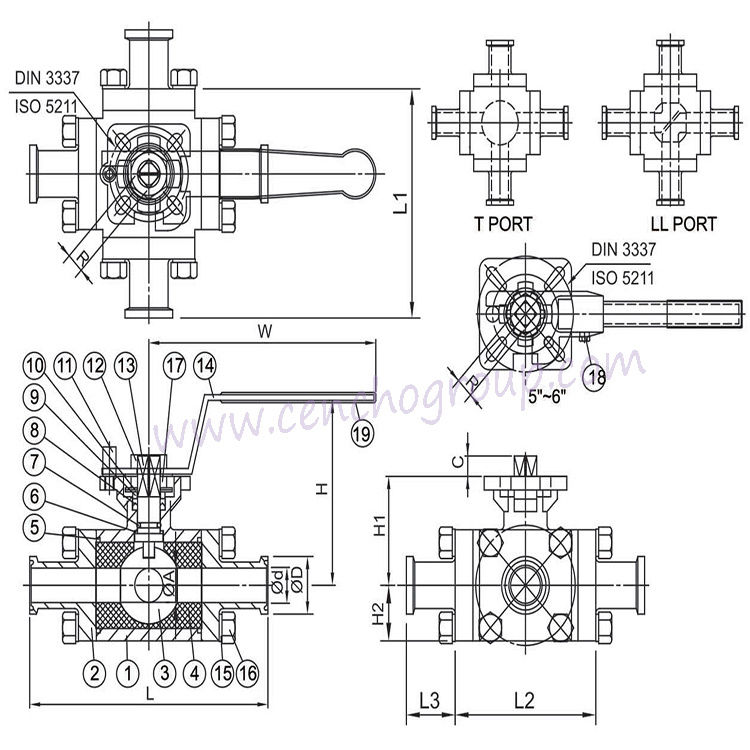

4 way Sanitary stainless steel ball valve Dimension:
|
SIZE |
A |
W |
H |
H1 |
C |
L |
d |
D |
L1 |
L2 |
L3 |
H2 |
|
1/2" |
9.5 |
121 |
78.0 |
44.5 |
9 |
118.0 |
9.5 |
25.4 |
91 |
67.6 |
23.4 |
23.5 |
|
3/4" |
15.8 |
121 |
82.0 |
48.0 |
9 |
127.0 |
15.8 |
25.4 |
98.5 |
73.0 |
25.5 |
26 |
|
1" |
22.2 |
137 |
90.0 |
59.0 |
11 |
152.6 |
22.2 |
50.4 |
117.4 |
84.5 |
32.9 |
30.5 |
|
1-1/2" |
35.0 |
182 |
104.0 |
72.0 |
14 |
175.0 |
35.0 |
50.4 |
139.3 |
107 |
32.3 |
40 |
|
2" |
47.6 |
182 |
114.5 |
82.0 |
14 |
201.4 |
47.6 |
63.9 |
166.3 |
131.5 |
34.8 |
50 |
|
2-1/2" |
60.2 |
370 |
108.0 |
100 |
17 |
227.7 |
60.2 |
77.5 |
174.0 |
130.4 |
43.6 |
61 |
|
3" |
73.0 |
400 |
134.0 |
125.5 |
23 |
260.6 |
73.0 |
90.9 |
204.0 |
157 |
47 |
74 |
|
4" |
97.4 |
400 |
143.0 |
135.5 |
23 |
290.5 |
97.4 |
118.9 |
257.5 |
193 |
64.5 |
84 |
4 way Sanitary stainless steel ball valve-MATERIALS LIST:
|
ITEM |
PART |
QTY |
MATERIALS |
|
|
CF8M |
CF3 |
|||
|
1 |
BODY |
1 |
A351-CF8M |
CF3M |
|
2 |
CAP |
4 |
A351-CF8M |
CF3M |
|
3 |
BALL |
1 |
A351-CF8M |
CF3M |
|
4 |
SEAT |
4 |
PTFE |
TEM-1600 |
|
5 |
GASKET |
2 |
PTFE |
PTFE |
|
6 |
THRUST WASHER |
1 |
PTFE |
PTFE |
|
7 |
O-RING |
1 |
VITON |
VITON |
|
8 |
STEM PACKING |
2 |
PTFE |
PTFE |
|
9 |
RING |
1 |
AISI 316 |
AISI 304 |
|
10 |
BEVEL WASHER |
2 |
AISI 301 |
AISI 301 |
|
11 |
SYOP PIN |
1 |
AISI 316 |
AISI 316 |
|
12 |
NUT |
2 |
AISI 304 |
AISI 304 |
|
13 |
STEM |
1 |
AISI 316 |
AISI 316 |
|
14 |
HANDLE |
1 |
AISI 304 |
AISI 304 |
|
15 |
SPRING WASHER |
16 |
AISI 304 |
AISI 304 |
|
16 |
BOLT |
16 |
AISI 304 |
ISI 304 |
|
17 |
PREVALING |
1 |
PVEICE |
ISI 304 |
|
18 |
NUT(5”-6”) |
1 |
AISI 304 |
ISI 304 |
|
19 |
PLASTIC COVER |
1 |
P.V.C |
P.V.C |
