Factory Price 1-PC 1/4”-2” Hexagonal Reduced Port Ball Valve Screwed End
hexagonal bar carbon steel ball valve are widely used in medicine, food, petroleum, chemical, metallurgy, electronics, machinery, construction, water, environmental protection and other industries.
Key word:
Classification:
Cast Iron Valve
Hotline:
Factory Price 1-PC 1/4”-2” Hexagonal Reduced Port Ball Valve Screwed End
Top
Hexagonal bar carbon steel ball valve Screwed End are used primarily on pipes to cut, distribute and change media flow.
Hexagonal bar carbon steel ball valve are widely used in medicine, food, petroleum, chemical, metallurgy, electronics, machinery, construction, water, environmental protection and other industries.

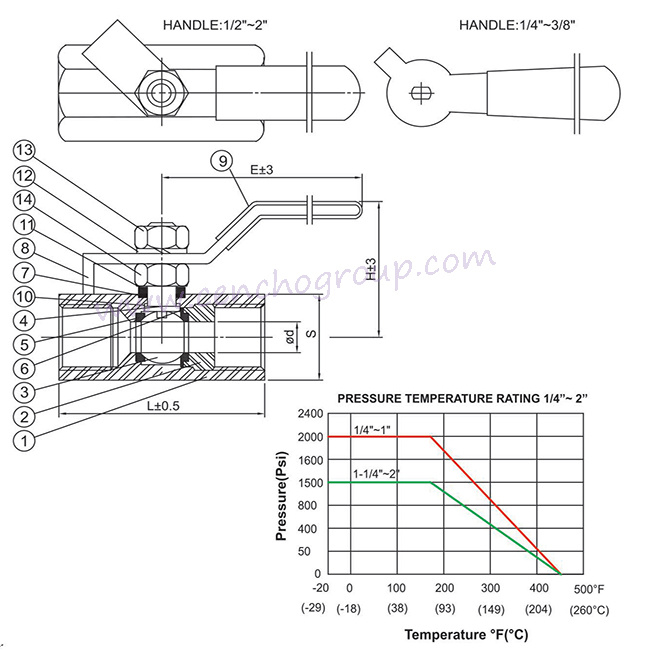

Hexagonal bar carbon steel ball valve Picture:
Pipe thread in according with ANSI B2.1,BS21:1973,DIN 259/2999,ISO228Blow Out Proof Stem
Pressure Rating 2000PSI（130BAR）/1500 PSI(100 BAR)
Investing casting body and insert
Reduce port
Carbon steel :bar stock (different dimension)
Sizes Start from 1/4" up to 2"
Hexagonal bar carbon steel ball valve-Dimension:
|
SIZE |
d |
H |
E |
S |
L |
kg |
|
1/4" |
5 |
29 |
61 |
17.5 |
46.5 |
0.1 |
|
3/8" |
7 |
35 |
80 |
21 |
51 |
0.12 |
|
1/2" |
9.2 |
66 |
104 |
28.5 |
56 |
0.28 |
|
3/4" |
12.5 |
69 |
107 |
34.5 |
65 |
0.44 |
|
1" |
15 |
75 |
122 |
41 |
76 |
0.61 |
|
1-1/4" |
20 |
78 |
146 |
53.5 |
92 |
1.26 |
|
1-1/2" |
25 |
85 |
148 |
57.5 |
98 |
1.42 |
|
4" |
32 |
98 |
150 |
73 |
114 |
2.66 |
Hexagonal bar carbon steel ball valve-MATERIALS LIST:
|
ITEM |
PART |
QTY |
MATERIALS |
|
|
316 |
Carbon Steel |
|||
|
1 |
BODY |
1 |
ASTM-A351 GR.CF8M |
AISI-1015/SISI-1020 |
|
2 |
INSCREWED SEAT RETAINER |
1 |
ASTM-A351-CF8M |
AISI-1015/SISI-1020 |
|
3 |
BALL |
1 |
SS316 |
SS316 |
|
4 |
STEM |
2 |
SS316 |
SS316 |
|
5 |
BALL SEAT |
1 |
MG1241 |
MG1241 |
|
6 |
CAP SEAT |
1 |
MG1241 |
MG1241 |
|
7 |
PACKING |
1 |
PTFE |
PTFE |
|
8 |
HANDLE |
1 |
STAIMLESS STEEL |
STAIMLESS STEEL |
|
9 |
HANDLE SLEEVE |
1 |
VINYL GRIP |
VINYL GRIP |
|
10 |
THRUST WASHER |
1 |
PTFE |
PTFE |
|
11 |
GLAND |
1 |
SS304 |
SS304 |
|
12 |
WASHER |
1 |
SS304 |
SS304 |
|
13 |
HANDLE NUT |
1 |
SS304 |
SS304 |
|
14 |
STEM NUT |
1 |
SS304 |
SS304 |
