1/4”,1/8”, 1/2”, 3/4”,1”-2” 2 piece stainless steel ball valves and fittings with F/M thread
2 piece stainless steel ball valve are standard products which are made to similar size and specification completely comply with needs of project pipeline. Generally, They are used in industrial applications as well as for general utility wherever the flow needs to be controlled. These applications include the petrol chemical and chemical, medical, the food and beverage as well as water,oil and gas.
2 piece stainless steel ball valve is composed of 2 parts (body and cap) and some fittings, . We also produce kinds of stainless steel fittings to comply with ball valve end connection type, for example, F/F thread end, M/M thread end, M/F thread end, SW or W end and stainless steel flange fitting and so on. The threads are include PT, NPT, BSP, BSPT and so on. 1 piece stainless steel ball valve is integral. The diameter of stainless steel ball is a little smaller than the diameter of pipe and pipe fittings, However 2 piece ball valve are designed into full port as well as reducing port. Just like this, 2 piece are controllable. In additional advantage, 2 piece ball valve is more easily maintenance than 1 piece stainless steel ball valve. Its fittings can be disassembled. Although 3 piece are more easily maintenance and resist pressure, but 2 piece are more economic. Of course, we have to choose more suitable type according to needs of project.

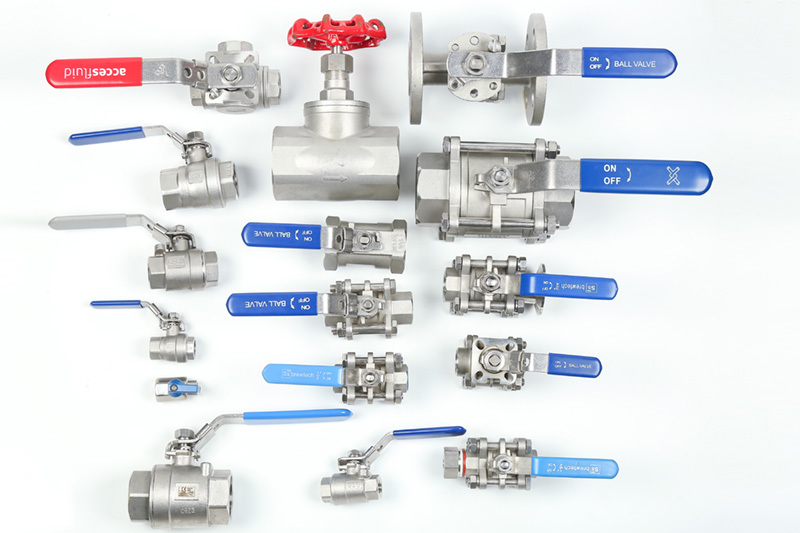

2 piece stainless steel ball valve picture
Slogan:
Let buyer’s fortune accumulate more and permanent just like our ball valve bear the fluid to flow lastingly and our casting&forging used durably service.
Feature:
Investment Casting for body and Cap
Internal Entry Blow-Out Proof Stem
Full port
Pressure Rating:1000PSI (PN63)
Thread End:F/M thread ends, PT,NPT,BSP,BSPT.ANSI B2.1,BS21,ISO7/1
Working Temperature:-25℃+180℃
Material:CF8M,CF8,CF3M,WCB
Inspection Testing:API 598,EN 12266
Drawing of 2 piece stainless steel ball valves and fittings with F/M thread
Material list
|
ITEM |
PART |
MATERIAL |
QTY |
||
|
1 |
BODY |
A216-WCB |
A351-CF8 |
A351-CF8M |
1 |
|
2 |
SEAT |
PTFE/RPTFE |
2 |
||
|
3 |
BALL |
304 |
304 |
316 |
1 |
|
4 |
GASKET |
PTFE |
1 |
||
|
5 |
CAP |
A216-WCB |
A351-CF8 |
A351-CF8M |
1 |
|
6 |
STEM |
304 |
304 |
316 |
1 |
|
7 |
THRUST WASHER |
PTFE |
1 |
||
|
8 |
PACKING |
PTFE |
1 |
||
|
9 |
GLAND NUT |
304 |
304 |
304 |
1 |
|
10 |
HANDLE |
304 |
304 |
304 |
1 |
|
11 |
SPRING WASHER |
304 |
304 |
304 |
1 |
|
12 |
NUT |
304 |
304 |
304 |
1 |
|
13 |
LOCK |
304 |
304 |
304 |
1 |
|
14 |
HANDLE COVER |
PLASTIC |
1 |
||
Dimension of 2 piece stainless steel ball valves and fittings with F/M thread
|
SIZE |
Φ d |
L |
H |
W |
ΦD |
N.M |
KGS |
|
||||||||
|
DN6 |
1/4” |
8 |
55 |
49 |
106 |
12.5 |
4 |
0.19 |
|
|||||||
|
DN10 |
3/8” |
8 |
55 |
49 |
106 |
12.5 |
4 |
0.19 |
|
|||||||
|
DN15 |
1/2” |
13.6 |
65.5 |
50 |
106 |
14 |
5 |
0.23 |
||||||||
|
DN20 |
3/4” |
18.2 |
78 |
57 |
115 |
20 |
8 |
0.35 |
||||||||
|
DN25 |
1” |
24 |
91 |
74 |
148 |
25 |
10 |
0.58 |
||||||||
|
DN32 |
1-1/4” |
31 |
101 |
79 |
148 |
32 |
14 |
0.90 |
||||||||
|
DN40 |
1-1/2” |
37 |
107 |
85 |
183 |
38 |
25 |
1.22 |
||||||||
|
DN50 |
2” |
48 |
133 |
95 |
183 |
50 |
40 |
1.75 |
||||||||
