3 way stainless steel ball valve t port
3 way stainless steel ball valve t port is a kind of ball valve. We usually describe it that ball valve t port 3 way stainless steel material.
Key word:
Classification:
3-WAY Ball Valve

Hotline:
3 way stainless steel ball valve t port
Top
I have a story with it. At the beginning, we have no this kind of type just because we are not able to recognize where its market and how to position its market. We only see it as a kind of niche market ball valve and it have no big quality batch. But later, so many our clients ask ball valve L port or ball valve t port 3 way stainless steel materials, however we only can tell our clients we have no or buy from others. When we buy from others, we found problems with them. The designed idea is completely out of our thinking, whatever refer to its shape, wall thickness, length, even its rate of flow and so on. So we recognized that we really have to deigned it by ourselves. We started to ask for our clients’ advice, research its market and its application fields, even our design team go to the site of installation. We really don’t remember clearly how many times we have the development meeting. Finally, a new ball valve t port 3 way stainless steel material successfully produce on production line. We eventually plug the gap of our production, even we get the reward of Chinese pipeline association. Surprisingly, we refused the reward from Chinese pipeline association just because it is a very general reward in this industry, especially this ball valve t port 3 way stainless steel material we designed is really different from others’ design. I think you should know.
3 way stainless steel ball valve t port picture
Slogan: Although there are three mouths on your full body, you never need argue with others. Because you are enough tolerant and controllable.
Feature:
Investment Casting for body and Cap
Internal Entry Blow-Out Proof Stem
L port/T port
Reduced port
Pressure Rating:1000PSI (PN63)
ISO 5211 mounting pad
Lug body
Thread End: F/F thread ends, PT,NPT,BSP,BSPT. according to ANSI B2.1, BS21, ISO228, DIN259/2999
Working Temperature:-25℃+180℃
Material:CF8M,CF8,CF3M,WCB
Inspection Testing:API 598,EN 12266
Option:
*Locking device
*anti-static device
*no mounting pad

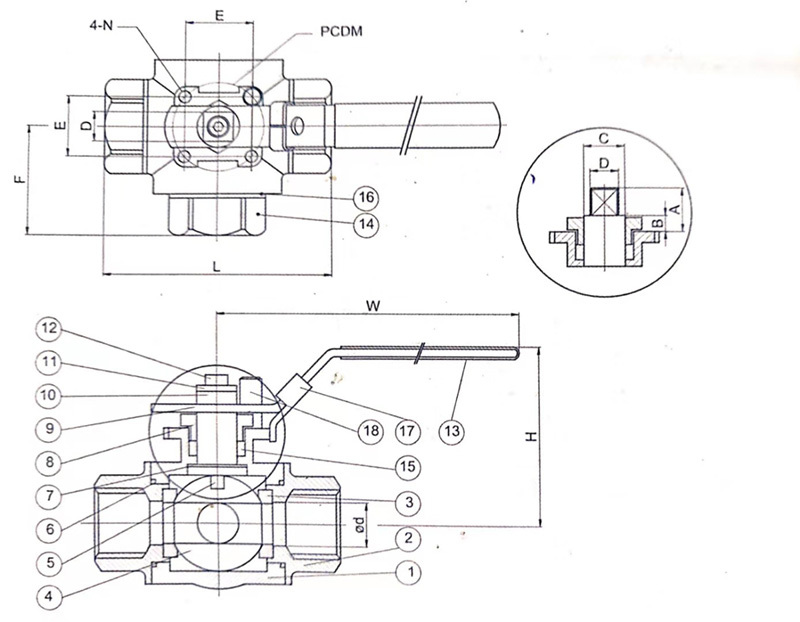

Drawing of ball valve t port 3 way stainless steel
Material list of ball valve t port 3 way stainless steel
ITEM |
PART |
MATERIAL |
QTY |
||
316 |
304 |
WCB |
|||
1 |
BODY |
A351-CF8M |
A351-CF8 |
ASTM-A216-WCB |
1 |
2 |
END CAP |
A351-CF8M |
A351-CF8 |
ASTM-A216-WCB |
2 |
3 |
BALL SEAT |
PTFE |
PTFE |
PTFE |
4 |
4 |
BALL |
A351-CF8M |
A351-CF8 |
ASTM-A216-WCB |
1 |
5 |
STEM |
AISI316 |
AISI304 |
AISI304 |
1 |
6 |
END SEALS |
PTFE |
PTFE |
PTFE |
2 |
7 |
THRUST WASHER |
PTFE |
PTFE |
PTFE |
1 |
8 |
GLAND NUT |
AISI304 |
AISI304 |
AISI304 |
1 |
9 |
HANDLE |
AISI304 |
AISI304 |
AISI304 |
1 |
10 |
HANDLE WASHER |
AISI304 |
AISI304 |
AISI304 |
1 |
11 |
WASHER |
AISI304 |
AISI304 |
AISI304 |
1 |
12 |
HANDLE NUT |
AISI304 |
AISI304 |
AISI304 |
1 |
13 |
HANDLE SLEEVE |
PVC |
PVC |
PVC |
1 |
14 |
END CAP |
A351-CF8M |
A351-CF8 |
ASTM-A216-WCB |
1 |
15 |
STEM PACKING |
PTFE |
PTFE |
PTFE |
2 |
16 |
END SEALS |
PTFE |
PTFE |
PTFE |
1 |
17 |
LOCK |
AISI304 |
AISI304 |
AISI304 |
1 |
18 |
STOP RING |
AISI304 |
AISI304 |
AISI304 |
1 |
Dimension of ball valve t port 3 way stainless steel
SIZE |
Φ d |
L |
H |
E |
B |
D |
C |
A |
F |
W |
H |
M |
N |
Toque kgf-cm |
CV FACTOR |
KGS |
DN6 |
1/4” |
11.0 |
64 |
29.7 |
4.0 |
9.0 |
12.7 |
10.0 |
32 |
132.0 |
58 |
42.0 |
M5*0.8 |
68 |
7.8 |
0.54 |
DN10 |
3/8” |
11.0 |
64 |
29.7 |
4.0 |
9.0 |
12.7 |
10.0 |
32 |
132.0 |
58 |
42.0 |
M5*0.8 |
68 |
7.8 |
0.51 |
DN15 |
1/2” |
12.7 |
75 |
29.7 |
6.5 |
9.0 |
12.7 |
12.5 |
36 |
132.0 |
65 |
42.0 |
M5*0.8 |
68 |
9.5 |
0.67 |
DN20 |
3/4” |
16.0 |
84 |
35.4 |
8.0 |
10.7 |
15.0 |
15.5 |
42 |
180.0 |
82 |
50.0 |
M6*1.0 |
105 |
14.0 |
1.25 |
DN25 |
1” |
20.0 |
101 |
35.4 |
9.5 |
10.7 |
15.0 |
17.0 |
50 |
180.0 |
90 |
50.0 |
M6*1.0 |
196 |
26.0 |
1.67 |
DN32 |
1-1/4” |
25.0 |
119 |
35.4 |
9.5 |
10.7 |
15.0 |
17.0 |
59 |
180.0 |
95 |
50.0 |
M6*1.0 |
266 |
43.0 |
2.35 |
DN40 |
1-1/2” |
32.0 |
130 |
49.5 |
8.0 |
14.0 |
20.0 |
19.0 |
62 |
232.0 |
101 |
70.0 |
M8*1.25 |
363 |
70.0 |
3.7 |
DN50 |
2” |
38.0 |
148.5 |
49.5 |
8.0 |
14.0 |
20.0 |
19.0 |
72 |
232.0 |
109 |
70.0 |
M8*1.25 |
500 |
102.0 |
5.69 |
3 way stainless steel ball valve t port Process:
Related products

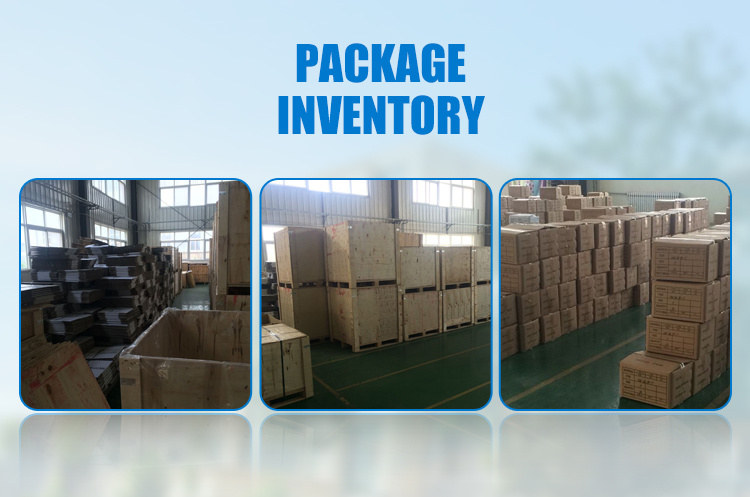

3 way stainless steel ball valve t port Packing
