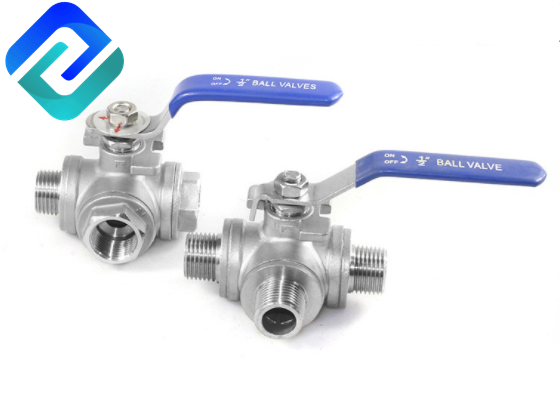

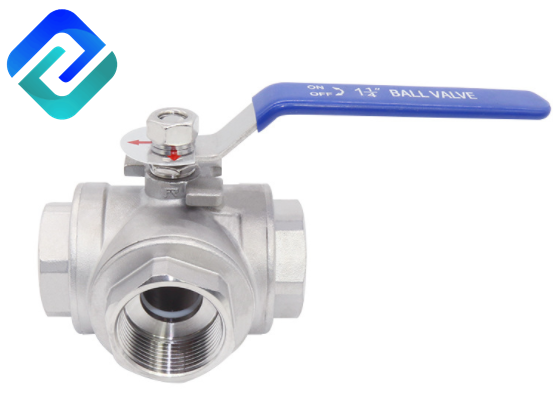

1/4’’ 1’’ stainless steel (316) 3-way ball valve - T/L port
The 1/2" 3 way Ball valve is available in T-Port and L-Port configurations completing the range of Threaded Full Port Stainless Steel Ball Valves for Brewing. The T-Port is allows flow in all 3 ports or it allows Flow in two ports only. Where as the L-Port allows flow in a 2 directions in a L formation and it allows no flow at all . Making this a Specialized 1/2" SS Ball Valve necessary for anyone who wants to direct Flow in 3 lines
Investment castings for body and cap
Internal entry blow-out proof stem
Pressure Rating:1000PSI(PN63)
Thread End:ANSI B2.1, BS21,ISO7/1
Mounting Pad: ISO5211 Working Temperature:-25℃~+180℃
Material:CF8M,CF8,CF3M,WCB
Medium:water, oil, gas, nitric acid, acetic acid, etc
Material List
|
ITEM |
PART |
MATERIAL |
QTY |
||
|
1 |
CAP |
A216-WCB |
A351-CF8 |
A351-CF8M |
3 |
|
2 |
GASKET |
PTFE |
3 |
||
|
3 |
SEAT |
PTFE/RPTFE |
4 |
||
|
4 |
BALL |
316 |
1 |
||
|
5 |
BODY |
A216-WCB |
A351-CF8 |
A351-CF8M |
1 |
|
6 |
STEM |
304 |
304 |
316 |
1 |
|
7 |
STEM THRUST WASHER |
PTFE |
1 |
||
|
8 |
O RING |
VITON |
1 |
||
|
9 |
PACKING |
304 |
1 |
||
|
10 |
GLAND NUT |
304 |
304 |
304 |
1 |
|
11 |
BELLWVLLE WASHER |
301 |
1 |
||
|
12 |
NUT |
304 |
2 |
||
|
13 |
PLATE WASHER |
304 |
1 |
||
|
14 |
STOPPER NUT |
304 |
1 |
||
|
15 |
LOCK |
304 |
1 |
||
|
16 |
HANDLE |
304 |
1 |
||
|
17 |
HANDLE COVER |
PLASTIC |
1 |
||
|
18 |
STOP PIN |
304 |
1 |
||

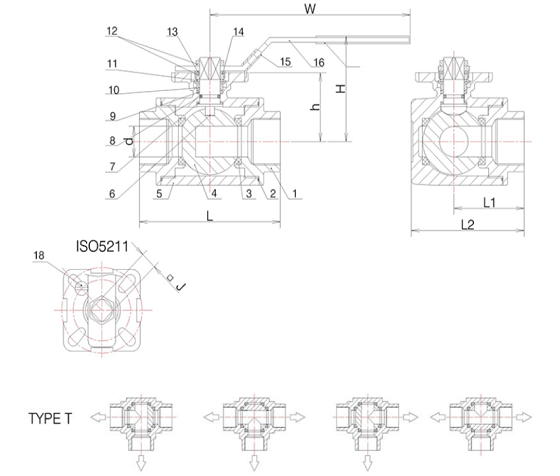

Dimension Table
|
SIZE |
Φd |
L |
H |
W |
h |
L1 |
J |
ISO5211 |
L2 |
N.M |
KGS |
|
|
DN6 |
1/4’’ |
9.5 |
75 |
66 |
130 |
36.8 |
37.5 |
9 |
F03/F04 |
57.5 |
8 |
0.71 |
|
DN10 |
3/8’’ |
11 |
75 |
66 |
130 |
36.8 |
37.5 |
9 |
F03/F04 |
57.5 |
8 |
0.68 |
|
DN15 |
1/2’’ |
12 |
75 |
66 |
130 |
36.8 |
37.5 |
9 |
F03/F04 |
57.5 |
8 |
0.64 |
|
DN20 |
3/4’’ |
15 |
85 |
72 |
161 |
41.2 |
42.5 |
11 |
F04/F05 |
65.5 |
9 |
0.95 |
|
DN25 |
1’’ |
20 |
100 |
77 |
161 |
46.5 |
50 |
11 |
F04/F05 |
79 |
15 |
1.40 |
|
DN32 |
1-1/4’’ |
25 |
122 |
92 |
203 |
56 |
61 |
14 |
F05/F07 |
97 |
20 |
2.90 |
|
DN40 |
1-1/2’’ |
32 |
131 |
96 |
203 |
60 |
65.5 |
14 |
F05/F07 |
106.5 |
30 |
3.65 |
|
DN50 |
2’’ |
40 |
158 |
107 |
203 |
70.5 |
79 |
14 |
F05/F07 |
129 |
45 |
6.30 |
|
DN65 |
2-1/2’’ |
49 |
178 |
135 |
254 |
95.5 |
89 |
17 |
F07/F10 |
145 |
60 |
8.96 |
|
DN80 |
3’’ |
60 |
202 |
147 |
254 |
106 |
101 |
17 |
F07/F10 |
167 |
90 |
13.10 |
|
DN100 |
4’’ |
75 |
246 |
160 |
310 |
119 |
123 |
17 |
F07/F10 |
203 |
120 |
22.11 |
Application of stainless steel 3way ball valve
This stainless steel 3 way ball valve can be used in kitchen, bathroom, toilet,balcony of home, Water Filter, industry and machinery equipment
