Brass ball valve 1 inch stainless steel ball valve 2000wog 3 inch 3 way ball valve stainless steel
MOQ:1000PCS EXW Price: 1/2''---- 27.9USD/PCS 3/4''------39.5USD/PCS L port 1/2''----28.56USD/PCS 3/4''-------50.5USD/PCS T port
Key word:
Classification:
3-WAY Ball Valve
Others
Hotline:
Brass ball valve 1 inch stainless steel ball valve 2000wog 3 inch 3 way ball valve stainless steel
Top
Brass ball valve 1 inch stainless steel ball valve 2000wog 3 inch 3 way ball valve stainless steel
This brass ball valve 1 inch also can be made by stainless steel material. The thread include G type, BSP type, and NPT type. NPT thread are American standard which is welcomed by the US, Canada, Brazil, Colombia, Chile, Ecuador, Peru etc. BSP thread are preferred by most European countries. While G thread are Chinese standard thread.

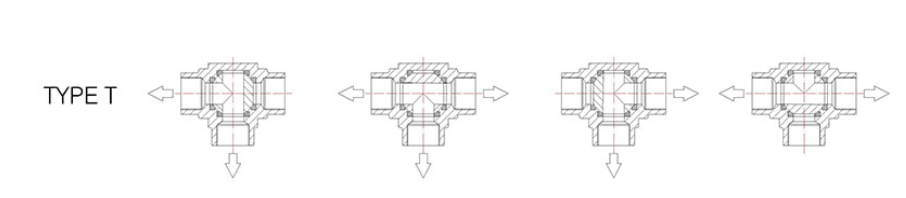

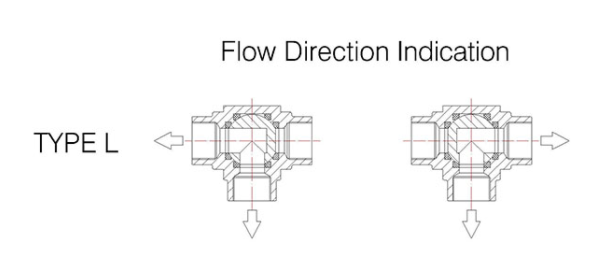

For this 3 way ball valve stainless steel, its flew direction is very important during your choosing. There are T type and L type flew directions as below, please choose the direction as per your practical applications.
When you order, please inform us you want T port or L port and you want G thread or BSP(the UK stankard) or NPT(the US standard) thread !
The size of brass/ stainless steel 3 way ball valve stainless steel we can make:

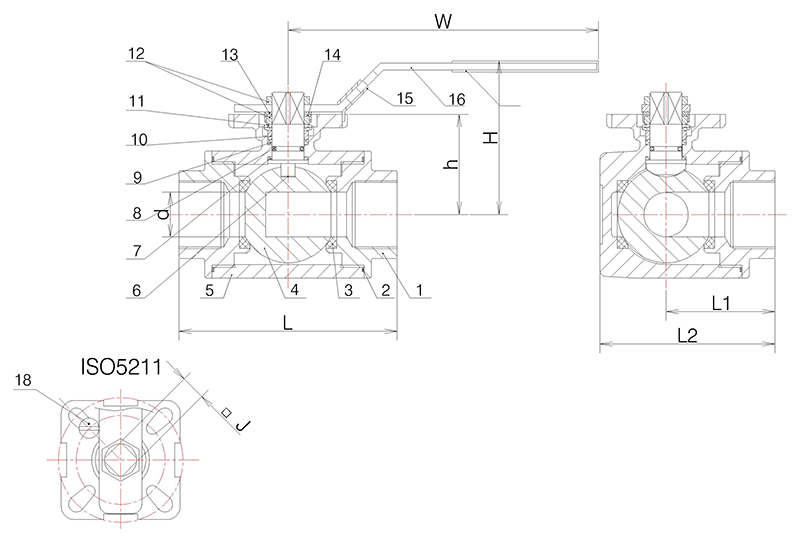

Dimention of brass/stainless steel ball valve:
|
SIZE |
Φd |
L |
H |
W |
h |
L1 |
J |
ISO5211 |
L2 |
N.M |
KGS |
|
|
DN6 |
1/4’’ |
9.5 |
75 |
66 |
130 |
36.8 |
37.5 |
9 |
F03/F04 |
57.5 |
8 |
0.71 |
|
DN10 |
3/8’’ |
11 |
75 |
66 |
130 |
36.8 |
37.5 |
9 |
F03/F04 |
57.5 |
8 |
0.68 |
|
DN15 |
1/2’’ |
12 |
75 |
66 |
130 |
36.8 |
37.5 |
9 |
F03/F04 |
57.5 |
8 |
0.64 |
|
DN20 |
3/4’’ |
15 |
85 |
72 |
161 |
41.2 |
42.5 |
11 |
F04/F05 |
65.5 |
9 |
0.95 |
|
DN25 |
1’’ |
20 |
100 |
77 |
161 |
46.5 |
50 |
11 |
F04/F05 |
79 |
15 |
1.40 |
|
DN32 |
1-1/4’’ |
25 |
122 |
92 |
203 |
56 |
61 |
14 |
F05/F07 |
97 |
20 |
2.90 |
|
DN40 |
1-1/2’’ |
32 |
131 |
96 |
203 |
60 |
65.5 |
14 |
F05/F07 |
106.5 |
30 |
3.65 |
|
DN50 |
2’’ |
40 |
158 |
107 |
203 |
70.5 |
79 |
14 |
F05/F07 |
129 |
45 |
6.30 |
|
DN65 |
2-1/2’’ |
49 |
178 |
135 |
254 |
95.5 |
89 |
17 |
F07/F10 |
145 |
60 |
8.96 |
|
DN80 |
3’’ |
60 |
202 |
147 |
254 |
106 |
101 |
17 |
F07/F10 |
167 |
90 |
13.10 |
|
DN100 |
4’’ |
75 |
246 |
160 |
310 |
119 |
123 |
17 |
F07/F10 |
203 |
120 |
22.11 |
Material of each elements:
|
ITEM |
PART |
MATERIAL |
QTY |
||
|
2 |
CAP |
A216-WCB |
A351-CF8 |
A351-CF8M |
3 |
|
|
GASKET |
PTFE |
3 |
||
|
3 |
SEAT |
PTFE/RPTFE |
4 |
||
|
4 |
BALL |
316 |
1 |
||
|
5 |
BODY |
A216-WCB |
A351-CF8 |
A351-CF8M |
1 |
|
6 |
STEM |
304 |
304 |
316 |
1 |
|
7 |
STEM THRUST WASHER |
PTFE |
1 |
||
|
8 |
O RING |
VITON |
1 |
||
|
9 |
PACKING |
304 |
1 |
||
|
10 |
GLAND NUT |
304 |
304 |
304 |
1 |
|
11 |
BELLWVLLE WASHER |
301 |
1 |
||
|
12 |
NUT |
304 |
2 |
||
|
13 |
PLATE WASHER |
304 |
1 |
||
|
14 |
STOPPER NUT |
304 |
1 |
||
|
15 |
LOCK |
304 |
1 |
||
|
16 |
HANDLE |
304 |
1 |
||
|
17 |
HANDLE COVER |
PLASTIC |
1 |
||
|
18 |
STOP PIN |
304 |
1 |
||

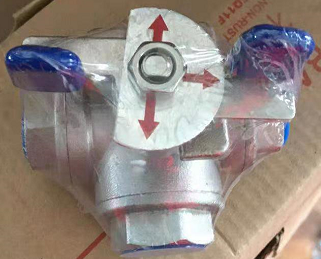

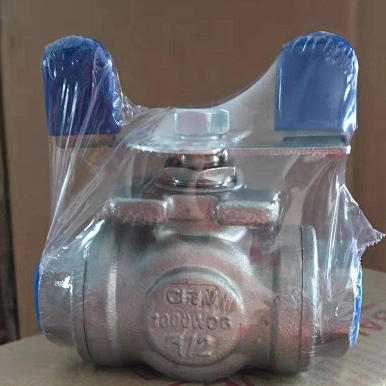

Stainless steel material three way ball valve:
