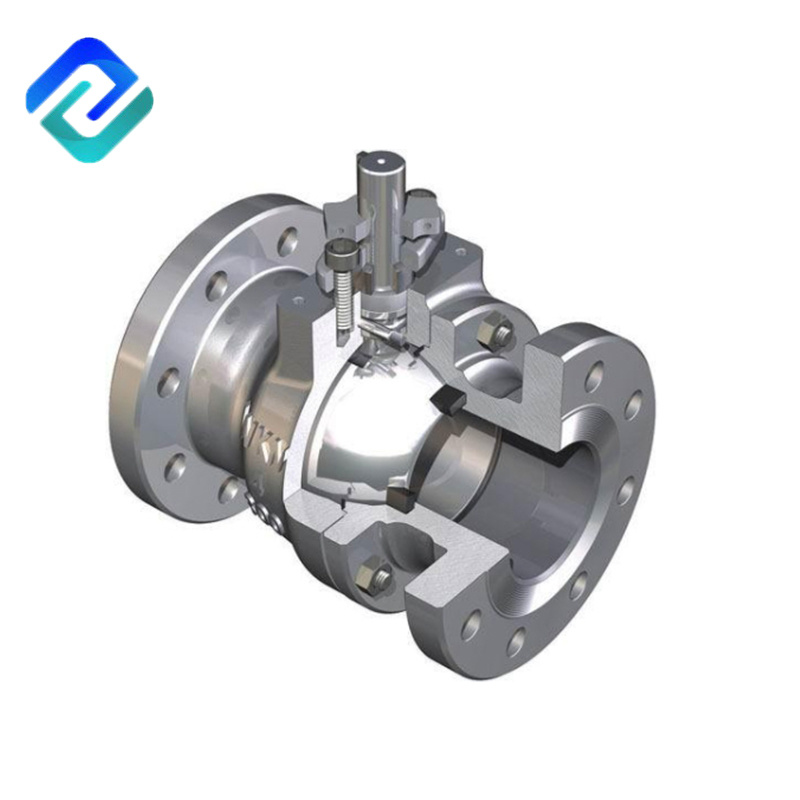

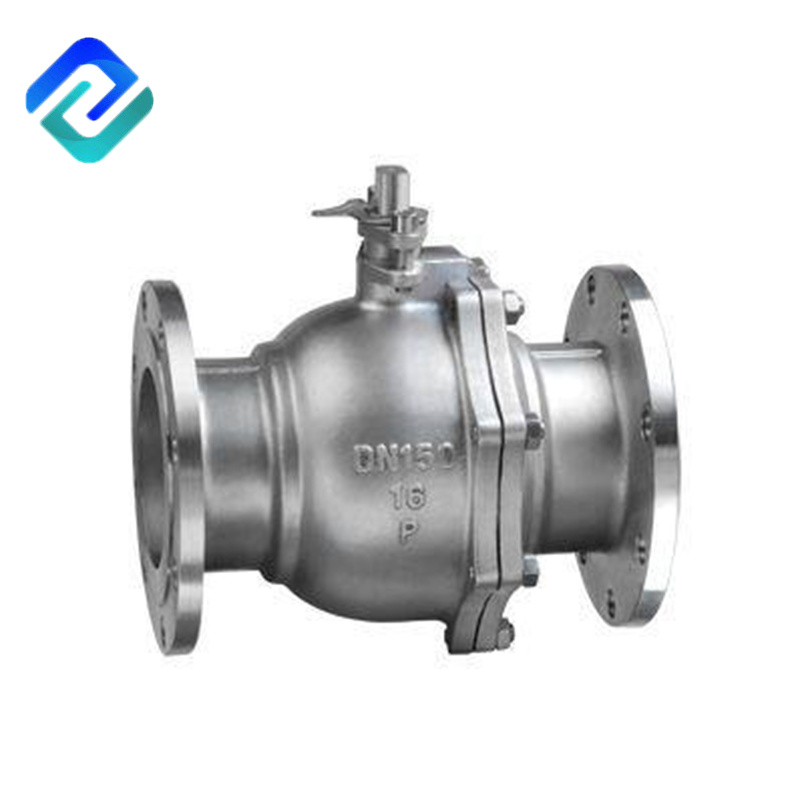

Metal seated ball valve design 8" stainless steel
Metal seated ball valve is widely used in petroleum refining, long-distance pipelines, chemical, paper, pharmaceutical, water conservancy, electric power, municipal, steel and other industries, and plays a pivotal role in the national economy.
Key word:
Classification:
2-PC Ball Valve

Hotline:
Metal seated ball valve design 8" stainless steel
Top
Dimension of Metal seated ball valve design 8" stainless steel
Pressure |
DN |
d |
L |
D |
D1 |
D2 |
b |
f |
Z-Φd |
H |
W |
Class |
1/2" |
13 |
108 |
89 |
60.5 |
35 |
11.5 |
1.6 |
4-16 |
79 |
135 |
3/4" |
19 |
117 |
98 |
70 |
43 |
11.5 |
1.6 |
4-16 |
84 |
135 |
|
1" |
25 |
127 |
108 |
79.5 |
51 |
12 |
1.6 |
4-16 |
95 |
170 |
|
1-1/4" |
32 |
140 |
117 |
89 |
64 |
13 |
1.6 |
4-16 |
103 |
170 |
|
1-1/2" |
38 |
165 |
127 |
98.5 |
73 |
15 |
1.6 |
4-16 |
111 |
200 |
|
2" |
51 |
178 |
152 |
120.5 |
92 |
16 |
1.6 |
4-19 |
120 |
200 |
|
2-1/2" |
64 |
190 |
178 |
139.5 |
105 |
18 |
1.6 |
4-19 |
153 |
300 |
|
3" |
76 |
203 |
190 |
152.5 |
127 |
19 |
1.6 |
4-19 |
163 |
300 |
|
4" |
102 |
229 |
229 |
190.5 |
157 |
24 |
1.6 |
8-19 |
182 |
400 |
|
5" |
127 |
356 |
254 |
216 |
186 |
24 |
1.6 |
8-22 |
260 |
500 |
|
6" |
152 |
394 |
279 |
241.5 |
216 |
26 |
1.6 |
8-22 |
280 |
800 |
|
8" |
203 |
457 |
343 |
298.5 |
270 |
29 |
1.6 |
8-22 |
- |
1100 |
|
Class |
1/2" |
13 |
140 |
95 |
66.5 |
35 |
15 |
1.6 |
4-16 |
79 |
135 |
3/4" |
19 |
152 |
117 |
82.5 |
43 |
16 |
1.6 |
4-19 |
84 |
135 |
|
1" |
25 |
165 |
124 |
89 |
51 |
18 |
1.6 |
4-19 |
95 |
170 |
|
1-1/4" |
32 |
178 |
133 |
98.5 |
64 |
19 |
1.6 |
4-19 |
103 |
170 |
|
1-1/2" |
38 |
190 |
156 |
114.5 |
73 |
21 |
1.6 |
4-22 |
111 |
200 |
|
2" |
51 |
216 |
165 |
127 |
92 |
23 |
1.6 |
4-22 |
120 |
200 |
|
2-1/2" |
64 |
241 |
190 |
149 |
105 |
26 |
1.6 |
8-19 |
153 |
300 |
|
3" |
76 |
283 |
210 |
168.5 |
127 |
29 |
1.6 |
8-22 |
163 |
300 |
|
4" |
102 |
305 |
254 |
200 |
157 |
32 |
1.6 |
8-22 |
182 |
400 |
|
5" |
127 |
381 |
279 |
235 |
186 |
35 |
1.6 |
8-22 |
260 |
500 |
|
6" |
152 |
403 |
318 |
270 |
216 |
37 |
1.6 |
12-22 |
280 |
800 |
|
8" |
203 |
502 |
381 |
330 |
270 |
42 |
1.6 |
12-25 |
- |
1100 |
Features of Metal seated ball valve design 8" stainless steel:
1. The fluid resistance is small, and its resistance coefficient is equal to the pipe length of the same length.
2. The structure is simple, small in size and light in weight.
3. It is compact and reliable. At present, the sealing surface material of the ball valve is widely used in plastics and has good sealing performance. It has also been widely used in vacuum systems.
4. The operation is convenient, the opening and closing is rapid, and the rotation is 90° from full opening to full closing, which is convenient for long-distance control.
5. The maintenance is convenient, the ball valve has a simple structure, and the sealing ring is generally movable, and the disassembly and replacement are relatively convenient.
6. When fully open or fully closed, the sealing surface of the ball and the valve seat is isolated from the medium, and the medium does not cause erosion of the sealing surface of the valve.
7. Wide range of applications, from small to a few millimeters, up to a few meters, from high vacuum to high pressure
Application of Metal seated ball valve design 8" stainless steel:
Metal seated ball valve is widely used in petroleum refining, long-distance pipelines, chemical, paper, pharmaceutical, water conservancy, electric power, municipal, steel and other industries, and plays a pivotal role in the national economy. It has a 90 degree rotation and the cock is a sphere with a circular through hole or passage through its axis.
The ball valve is mainly used in the pipeline to cut, distribute and change the flow direction of the medium. It only needs to be rotated 90 degrees and the torque can be closed tightly. Ball valve is most suitable for switching and shut-off valves.
