WOG stainless steel flanged ball valve
MOQ:10PCS EXW Price:13.68~220USD/PCS
Key word:
Classification:
3-PC Ball Valve
Hotline:
WOG stainless steel flanged ball valve
Top
OG stainless steel flanged ball valve
This 1’’ 1-1/2’’ water oil gas stainless steel ball valve flanged are widely used in petrochemical, electrical equipment, municipal water supply, urban heating and oil refining, natural gas, food, pharmaceutical, instrumentation etc.
Investment castings for body and cap
Internal entry blow-out proof stem
Flanged End:DIN2545
Face to Face:DIN3202-F1
Pressure Rating:PN40/1.6-6.4MPA

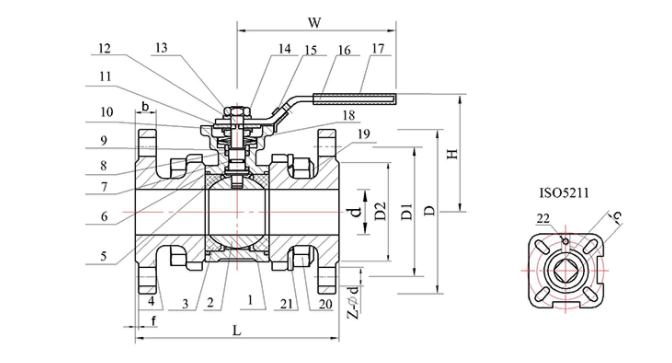

Dimension of stainless steel ball valve flanged:
|
SIZE |
Φd |
D |
L |
H |
W |
C |
D1 |
D2 |
b |
f |
Z-Φd1 |
ISO5211 |
N.M |
KGS |
|
|
DN15 |
1/2’’ |
15 |
95 |
130 |
88 |
146 |
9 |
65 |
45 |
16 |
2 |
9 |
4-Φ14 |
5 |
2.01 |
|
DN20 |
3/4’’ |
20 |
105 |
150 |
90 |
146 |
11 |
75 |
58 |
18 |
2 |
9 |
4-Φ14 |
8 |
3.11 |
|
DN25 |
1’’ |
25 |
115 |
160 |
96 |
153 |
11 |
85 |
68 |
18 |
2 |
11 |
4-Φ14 |
10 |
3.71 |
|
DN32 |
1-1/4’’ |
32 |
140 |
180 |
105 |
153 |
14 |
100 |
78 |
18 |
2 |
11 |
4-Φ18 |
14 |
5.61 |
|
DN40 |
1-1/2’’ |
38 |
150 |
200 |
120 |
217 |
14 |
110 |
88 |
18 |
3 |
14 |
4-Φ18 |
18 |
7.00 |
|
DN50 |
2’’ |
50 |
165 |
230 |
130 |
217 |
14 |
125 |
102 |
20 |
3 |
14 |
4-Φ18 |
25 |
9.18 |
|
DN65 |
2-1/2’’ |
65 |
185 |
290 |
160 |
251 |
17 |
145 |
122 |
22 |
3 |
17 |
8-Φ18 |
48 |
15.61 |
|
DN80 |
3’’ |
80 |
200 |
310 |
175 |
251 |
17 |
160 |
138 |
24 |
3 |
17 |
8-Φ18 |
75 |
20.01 |
|
DN100 |
4’’ |
100 |
235 |
350 |
200 |
291 |
17 |
190 |
162 |
24 |
3 |
17 |
8-Φ22 |
110 |
27.2 |
Material List:
|
ITEM |
PART |
MATERIAL |
QTY |
|||
|
1 |
BODY |
A216-WCB |
A351-CF8 |
A351-CF8M |
1 |
|
|
2 |
BALL |
304 |
304 |
316 |
1 |
|
|
3 |
SEAT |
PTFE/RPTFE |
2 |
|||
|
4 |
CAP |
A216-WCB |
A351-CF8 |
A351-CF8M |
2 |
|
|
5 |
THRUST WASHER |
PTFE |
1 |
|||
|
6 |
GASKET |
PTFE |
2 |
|||
|
7 |
O-RING |
VITON |
1 |
|||
|
8 |
PACKING |
PTFE |
2 |
|||
|
9 |
GLAND NUT |
304 |
1 |
|||
|
10 |
STOPPER NUT |
304 |
1 |
|||
|
11 |
TAB WASHER |
304 |
1 |
|||
|
12 |
SPRING WASHER |
304 |
1 |
|||
|
13 |
STEM |
304 |
304 |
316 |
1 |
|
|
14 |
NUT |
304 |
2 |
|||
|
15 |
LOCK |
304 |
1 |
|||
|
16 |
HANDLE |
304 |
1 |
|||
|
17 |
HANDLE COVER |
PLASTIC |
1 |
|||
|
18 |
BELLEVLLE WASHER |
301 |
2 |
|||
|
19 |
BOLT |
304 |
4(6) |
|||
|
20 |
NUT |
304 |
8(12) |
|||
|
21 |
SPRING WASHER |
304 |
8(12) |
|||
|
22 |
STOP PIN |
304 |
1 |
|||

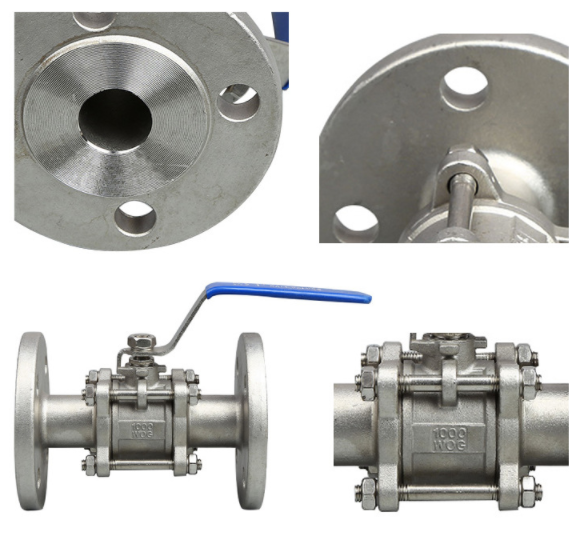

Detailed image of stainless steel ball valve flange
Working Temperature:-25℃~+180℃
Material:CF8M,CF8,CF3M,WCB
Medium: water, oil, gas and some corrosive liquids
