1-1/2" full port 316 stainless steel 2-piece ball valve 2" npt stainless steel ball valve stainless steel ball valve flanged

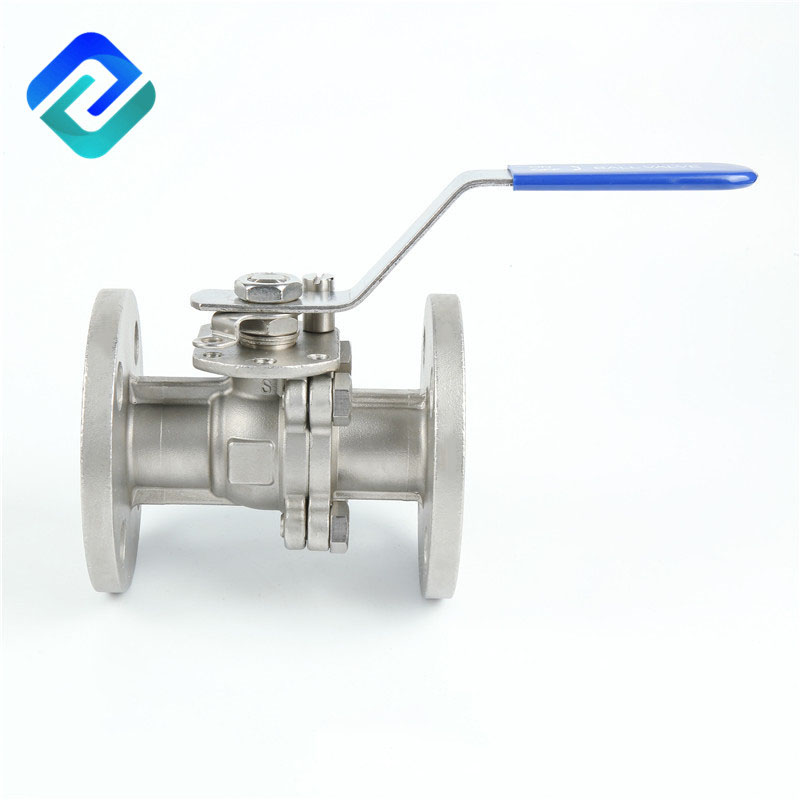

Our 2 piece 316 stainless steel ball valve flanged provides safe operation for both general and industrial chemical applications and hazardous environments. A full bore high performance with Stainless Steel body, reinforced seat, graphite seal and mounting top for actuation.
Benefiting from a split body, two piece designed ball valve with an antistatic spring loaded 'stem-to-ball' and 'stem-to-body' fitted as standard.1-1/2" full port 316 stainless steel 2-piece ball valve is with material of 316 stainless steel and 1-1/2’’ size.
Difference between SS316 and SS304:
About characteristics
304 stainless steel
304 stainless steel is the most widely used chromium-nickel stainless steel with good corrosion resistance, heat resistance, low temperature strength and mechanical properties. Corrosion resistant in the atmosphere,
If it is an industrial atmosphere or heavily polluted area, it needs to be cleaned in time to avoid corrosion.
316 stainless steel
316 stainless steel is the second most widely used steel grade after 304, mainly used in the food industry and surgical equipment. Because of the addition of Mo, its corrosion resistance, atmospheric corrosion resistance and high temperature strength are particularly good. Can be used under harsh conditions; excellent work hardening (non-magnetic).
Material composition
1. Their degree of high temperature resistance is different
304 high temperature resistance is 800 degrees, 316 high temperature resistance is 900-1000 degrees
2. 316 contains Mo, 304 does not contain Mo. Mo acts as a carbonizing agent to prevent steel from becoming brittle.
3. 304 and 316 are all horse-shaped stainless steel, but with different main rust-preventing metal elements.
4. Under normal circumstances, 304 is mainly anti-acid, while 316 can prevent acid and alkali.
5. 316 and 304 all contain chromium, nickel content of SS316 is higher than that of SS304, so corrosion resistance is better.
6. 316 market price is higher than 304
Investment castings for body and cap
Internal entry blow-out proof stem
Flanged end:ASME B 16.5
Face to Face:ANSI 16.10
Mounting Pad: ISO5211
Pressure Rating:150LB

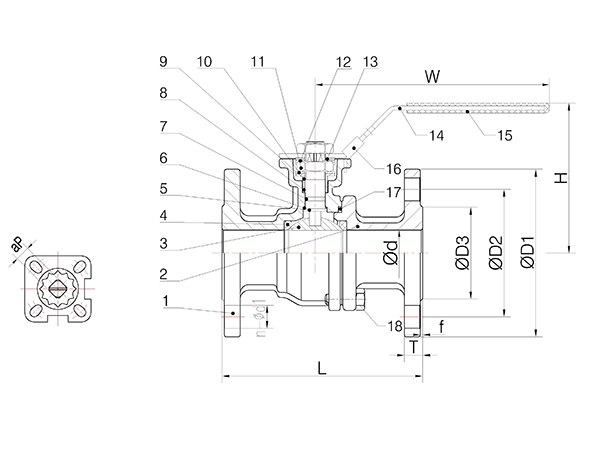

Dimension of stainless steel ball valve flanged:
SIZE |
Φd |
L |
T |
F |
D1 |
D2 |
D3 |
n-Φd1 |
H |
W |
P |
ISO5211 |
N.M |
KGS |
|
DN15 |
1/2’’ |
15 |
108 |
9.7 |
1.6 |
89 |
60.5 |
35 |
4-16 |
80 |
145 |
9 |
F03/F04 |
5 |
1.55 |
DN20 |
3/4’’ |
20 |
117 |
10.5 |
1.6 |
98 |
98 |
43 |
4-16 |
85 |
145 |
9 |
F03/F04 |
8 |
2.00 |
DN25 |
1’’ |
25 |
127 |
11.2 |
1.6 |
108 |
108 |
51 |
4-16 |
95 |
160 |
11 |
F04/F05 |
10 |
2.80 |
DN32 |
1-1/4’’ |
32 |
140 |
12.7 |
1.6 |
117 |
117 |
63.5 |
4-16 |
108 |
160 |
11 |
F04/F05 |
14 |
3.90 |
DN40 |
1-1/2’’ |
38 |
165 |
14.7 |
2 |
127 |
127 |
73.2 |
4-16 |
114 |
185 |
14 |
F05/F07 |
18 |
5.05 |
DN50 |
2’’ |
50 |
178 |
16.3 |
2 |
152 |
152 |
92 |
4-19 |
124 |
185 |
14 |
F05/F07 |
25 |
7.15 |
DN65 |
2-1/2’’ |
65 |
190 |
17.9 |
2 |
178 |
178 |
104.7 |
4-19 |
148 |
230 |
17 |
F07/F10 |
48 |
13.90 |
DN80 |
3’’ |
76 |
203 |
19.5 |
2 |
190 |
190 |
127 |
4-19 |
158 |
230 |
17 |
F07/F10 |
75 |
15.92 |
DN100 |
4’’ |
94 |
229 |
24.3 |
2 |
229 |
229 |
157.2 |
4-17 |
191 |
320 |
17 |
F07/F10 |
110 |
26.42 |
Material of stainless steel ball valve flanged:
ITEM |
PART |
MATERIAL |
QTY |
||
1 |
BODY |
A216-WCB |
A351-CF8 |
A351-CF8M |
1 |
2 |
CAP |
A216-WCB |
A351-CF8 |
A351-CF8M |
1 |
3 |
BALL |
304 |
304 |
316 |
1 |
4 |
SEAT |
PTFE |
2 |
||
5 |
STEM |
304 |
304 |
316 |
1 |
6 |
THRUST WASHER |
PTFE |
1 |
||
7 |
O-RING |
VITON |
1 |
||
8 |
PACKING |
PTFE |
2 |
||
9 |
GLAND NUT |
304 |
1 |
||
10 |
BELLEVLLE WASHER |
301 |
1 |
||
11 |
NUT |
304 |
1 |
||
12 |
NUT STOPPER |
304 |
1 |
||
13 |
PLATE |
304 |
2 |
||
14 |
HANDLE |
304 |
1 |
||
15 |
HANDLE COVER |
PLASTIC |
1 |
||
16 |
LOCK |
304 |
1 |
||
17 |
GASKET |
PTFE |
2 |
||
18 |
BOLT |
304 |
1 |

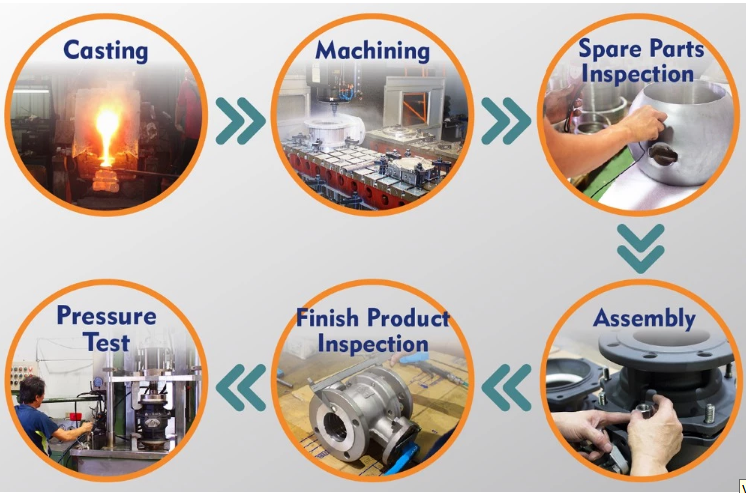

Production process of stainless steel ball valve flanged:
Shipping
We ship out your order by sea or air according to customer‘s request.
We will try to ship out your order within 1 week after receiving your payment.
We will inform you with the tracking number once your order has been sent out.
We accept T/T bank transfer, L/C and PayPal.
Packing process of 1-1/2" full port 316 stainless steel 2-piece ball valve:
Quality control of 1-1/2" full port 316 stainless steel 2-piece ball valve:
Why Choose Us?
We provide OEM/ODM products and services according to international standard and customer requirements. We accept customer label / logo.
We have R&D abilities to enhance product performance and quality according to customer’s demands.
We can produce big size ball valves (16” to 24” / DN400 to DN600) which other companies might not be able to produce.
We have Metal Seated Ball Valves for high temperature media (maximum to 500°C), which is uncommon in valve production.
We have Multi-Port Ball Valves and 3-Way V Port Ball Valve, which are rarely found in other ball valve producers.
We have over 19 years of experience of manufacturing ball valves.
We have many certificates to guarantee and ensure product quality and safety, including ISO 9001:2015, CE, API 6D, API 607, API 6FA, and DNV-GL Approval etc.
ISO 5211 top flange for direct mounting with actuator for automation service.
Any questions will be replied within 24 hours.
Working Temperature:-25℃~+180℃
Material:CF8M,CF8,CF3M,WCB
