M16 thread stainless steel manhole cover hand wheel bar
Save 20% cost of entire body no weld with copper sleeve casting processing polished part for brewing pressure vessel accessory M16 thread stainless steel manhole cover hand wheel bar.
Key word:
Classification:
Stainless Steel Sanitary Valves , Pipe Fitting and Accessones

Hotline:
M16 thread stainless steel manhole cover hand wheel bar
Top
Save 20% cost of entire body no weld with copper sleeve casting processing polished part for brewing pressure vessel accessory M16 thread stainless steel manhole cover hand wheel bar.
Description of stainless steel manhole cover
Stainless steel manhole cover hand wheel bar is uesed for fastening the stainless steel manhole cover which is a kind of brewing pressure vessel accessory.
We produce this hand wheel bar by casting processing which is silica sol lost wax investment casting. the body is overall entire, no any welding, especially we added some slot on each hand bar so that it looks better and avoid butterfingered when we operated. There are two or three prominent longitudinal bar in the stainless steel casting sleeve so that we can better fix the copper thread fitting in it when insert it. Then, we make the head of stainless steel sleeve to take deformation so that avoid the copper thread fitting taking off. After polishing, we can get a perfect surface of stainless steel manhole cover hand wheel bar. More surprising, we save more our cost by this process which get more competitive in market.
Comparably, we generally produced the stainless steel manhole cover hand wheel bar by welding process. Firstly, we cut the stainless steel bar into short bar and then we machine them into suitable bar which dimension must comply with requirements of part drawing. Secondly, we machine the copper thread fitting to insert in the stainless steel sleeve which have been machined in advance and with two welding slot on each side of stainless steel sleeve. Thirdly we used weld tooling to fix bar and sleeve over to weld them well. Finally, we finished this hand wheel bar by polishing. But there are some shortcomings on this process. Firstly, when we weld it, the internal of sleeve will take a deformation so that we machine the thread difficultly. Secondly we found the surface keep weld mark and not smooth after polishing which affect the entire surface.
We solute entire body of hand wheel bar in the field of brewing pressure vessel accessory by stainless steel casting process. The product is popular with our customer come from worldwide.

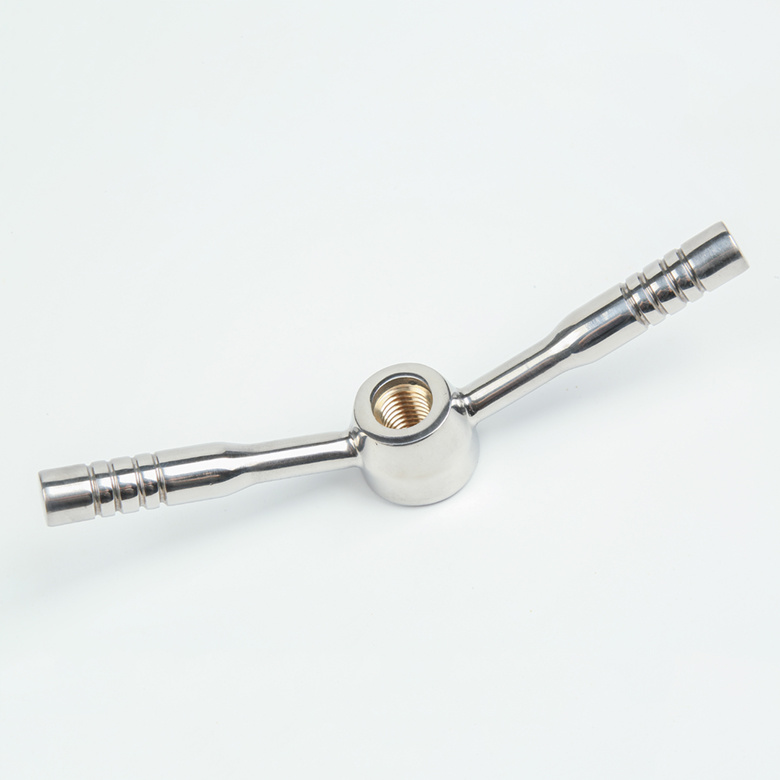

stainless steel manhole cover hand wheel bar main picture

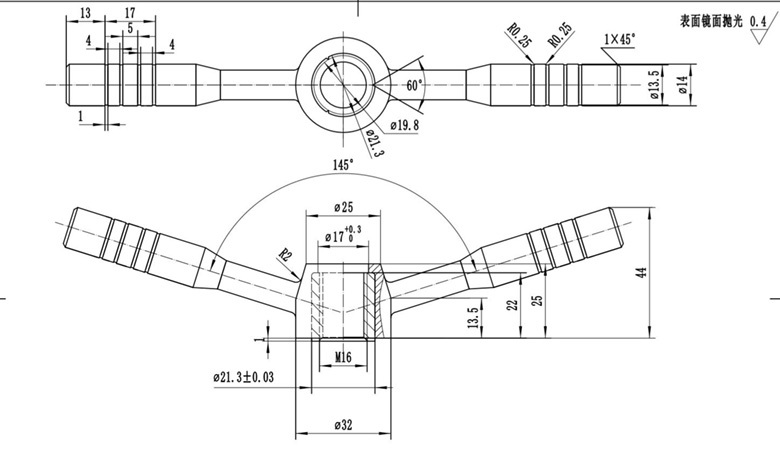

brewing pressure vessel accessory dimension
brewing pressure vessel accessory M16 thread stainless steel manyhole cover hand wheel bar
M16 thread was included two kinds, one is M16x1.5, another is M16X2
