stainless steel Internally threaded mini ball valve usa- fxm npt

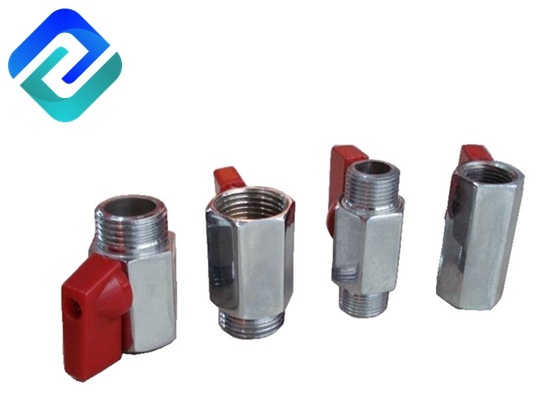

The main handle of the internal thread mini ball valve is black, red, blue plastic handle, the valve body is small, generally used in small caliber pneumatic and hydraulic pipelines, light weight, beautiful appearance, especially suitable for some pneumatic pipelines
Key word:
Classification:
Mini Ball Valve

Hotline:
stainless steel Internally threaded mini ball valve usa- fxm npt
Top
The main handle of the internal thread mini ball valve is black, red, blue plastic handle, the valve body is small, generally used in small caliber pneumatic and hydraulic pipelines, light weight, beautiful appearance, especially suitable for some pneumatic pipelines, this valve It is not only small in size, light in weight, beautiful, but also simple, economical and practical. It is called a mini ball valve and is one of the better valves.
Internally threaded mini ball valve is connected with internal thread at both ends, it is very convenient to install and disassemble, fast, simple, economic and practical
Applicable occasions: It is widely used in various chemical, mechanical and electrical engineering, machinery manufacturing, shipbuilding, power, petrochemical, metallurgy, plumbing, water treatment, mechanical equipment manufacturing, pneumatic pipelines, hydraulic pipelines, and many other industries.
Installation Precautions:
1. Leave the installation space for the handle, otherwise the switches cannot reach 90 degrees,
2. The space for disassembling and assembling of the valve should be reserved, otherwise the entire valve assembly will be very troublesome.
3. Can not be used for throttling, because the ball valve is a ball rotary switch, throttling will damage the ball valve
4. Do not damage the thread of the ball valve, do not press heavy material during transportation, the valve stem will be tightly sealed.
5. When the temperature is high and the pressure is high, the fluid main switch should be turned off first to prevent the fluid from flowing out and hurting people.
6. Mini-ball valve with internal thread should be removed as little as possible, otherwise the thread will be deformed due to repeated repeated installation, and the phenomenon of tight seal will appear.
7. Internally threaded mini ball valve seals are generally PTFE seals. 304 and 316 materials have good corrosion resistance. They are used in power, mechanical and electrical engineering, instrumentation pipelines, pneumatic pipelines, hydraulic pipelines, chemical, petrochemical, metallurgy, and ships. Large applications in machinery manufacturing, textile machinery, food machinery, etc.
The main advantages of internally threaded mini ball valves:
1. Low body resistance, almost no flow resistance 2.Simple structure, economical and practical, easy and fast installation, lightweight, beautiful, mini
3. Tight and reliable, good sealing performance, the ball can be well sealed with the valve body, and can achieve good sealing performance in vacuum
4.Easy operation, fast opening and closing, only need to rotate 90 ° from fully open to fully closed, which is convenient for remote control
5. Convenient maintenance, simple structure of ball valve, seal ring is generally movable, and it is more convenient to disassemble and replace
6. Good corrosion resistance. When fully open or fully closed, the sealing surface of the ball and valve seat is isolated from the medium. When the medium passes, it will not cause erosion of the valve sealing surface.
7. Wide range of application, from small diameter to several millimeters, large to several meters, can be applied from high vacuum to high pressure
8.Because the ball valve is wiping during opening and closing process, it can be used in the medium with suspended solid particles
F/F mini ball valve
Features:
1000PSI/PN63
Reduce Port
Investment Casting
Blow-out Proof Stem
External Polished
Max Temperature :-25℃ to 180 ℃
Suitable medium:Water, oil, weak acid, weak alkaline liquid, etc.
PTFE Seats & Seals
Thread: ASME B1.20.1 BS21.DIN2999/259, ISO228-1, JIS B 0203, ISO7/1
Inspection Testing: API598, EN12266
Material List:
ITEM |
DESIGNATION |
QTY |
MATERIAL |
1 |
O-RING |
2 |
VITON |
2 |
STEM |
1 |
304/316 |
3 |
BOLT |
1 |
304 |
4 |
LEVER |
1 |
ALUMINUM ALLOY |
5 |
BODY |
1 |
CF8/CF8M |
6 |
CAP |
1 |
CF8/CF8M |
7 |
BALL SEAT(A) |
1 |
PTFE |
8 |
BALL |
1 |
304/316 |
9 |
BALL SEAT(B) |
1 |
PTFE |
10 |
THRUST WASHER |
1 |
PTFE |

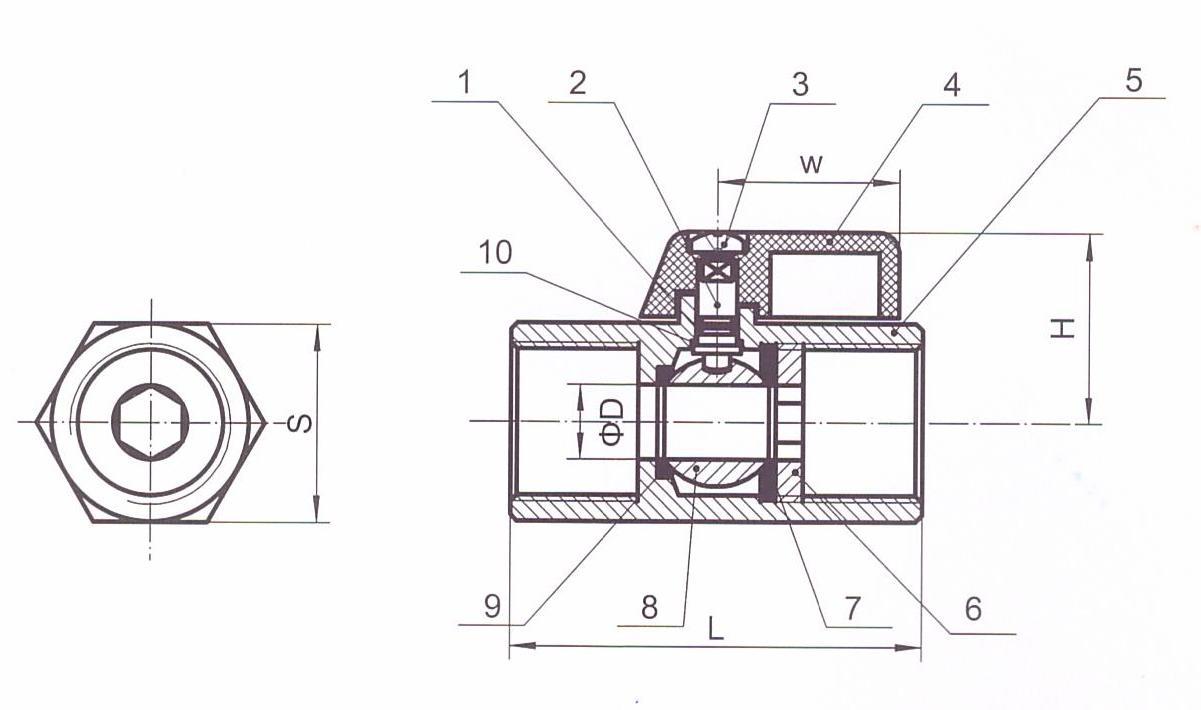

Dimensions(mm):
|
1/4’’ |
3/8’’ |
1/2’’ |
3/4’’ |
1’’ |
D |
8 |
8 |
9.2 |
12.5 |
15 |
L |
39 |
41 |
46 |
55 |
65 |
H |
26.5 |
26.5 |
28.3 |
31.5 |
34 |
W |
22.8 |
22.8 |
22.8 |
22.8 |
22.8 |
S |
21 |
21 |
24.5 |
31 |
38 |
Note:If the thread is taper type(NPT/BSPT),the nominal diameter is 7MM.
