Two Way PN16 Stainless Steel 316 Non-Return Swing Check Valve
Top
Two Way PN16 Stainless Steel 316 Non-Return Swing Check Valve
The swing check valve is also called a check valve, and its function is to prevent the medium in the pipeline from flowing backward. This type of valve can be installed horizontally or vertically in the pipeline.
Specification of swing check valve:
Investment Castings for body and Cap
Thread End:ANSI B2.1, BS21,ISO7/1
Pressure Rating:200PSI(PN16)
Working Temperature: -25℃+180℃
Material:CF8M,CF8,CF3M,WCB
Inspection Testing:API 598, EN 12266

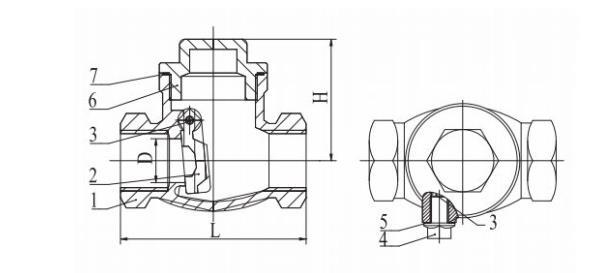

Material List of swing check valve
|
ITEM |
PART |
MATERIAL |
QTY |
||
|
1 |
BODY |
A216-WCB |
A351-CF8 |
A351-CF8M |
1 |
|
2 |
DISC |
A216-WCB |
A351-CF8 |
A351-CF8M |
1 |
|
3 |
PLUG |
304 |
304 |
316 |
|
|
4 |
NUT |
304 |
|
||
|
5 |
GASKET A |
PTFE |
1 |
||
|
6 |
CAP |
A216-WCB |
A351-CF8 |
A351-CF8M |
1 |
|
7 |
GTASKET B |
PTFE |
|
||
Dimension Table of swing check valve:
|
SIZE |
D |
L |
H |
KGS |
|
|
DN6 |
1/4’’ |
10 |
63 |
42 |
0.28 |
|
DN10 |
3/8’’ |
12 |
63 |
42 |
0.26 |
|
DN15 |
1/2’’ |
15 |
65 |
42 |
0.30 |
|
DN20 |
3/4’’ |
20 |
80 |
46 |
0.48 |
|
DN25 |
1’’ |
25 |
90 |
50 |
0.73 |
|
DN32 |
1-1/4’’ |
32 |
104 |
54 |
1.02 |
|
DN40 |
1-1/2’’ |
40 |
120 |
64 |
1.48 |
|
DN50 |
2’’ |
50 |
141 |
71 |
2.15 |
|
DN65 |
2-1/2’’ |
64 |
163 |
94 |
2.96 |
|
DN80 |
3’’ |
73 |
191 |
103 |
4.14 |
|
DN100 |
4’’ |
94 |
238 |
136 |
8.86 |
Application of this stainless steel 316 swing check valve:
It can be applied to various media such as water, steam, oil, nitric acid, acetic acid, strong oxidizing medium and urea. Mainly used in petroleum, chemical, pharmaceutical, fertilizer, electricity and other pipelines.
Package:
FAQ:
1.when the products will be shipped?
within 7-15 days after receiving the prepayment
2.do you have OEM service ?
Yes, a variety of products size, quality and quantity can be customized according to your need.
3. could you offer a free sample?
Yes, samples can be provided for free.
4. How can I pay for the products?
We accept a variety of payment methods, Such as T/T,L/C,D/P,Western Union,Paypal, Trade assurance.
5. How do you deal with that if there are some quality problems in products?
We will be responsible for all the quality problems.
6. Are you a factory or trade company?
We are a factory with 19 years experience in valve research and production.
