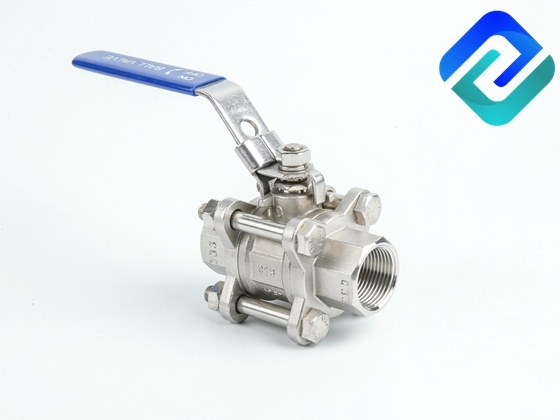

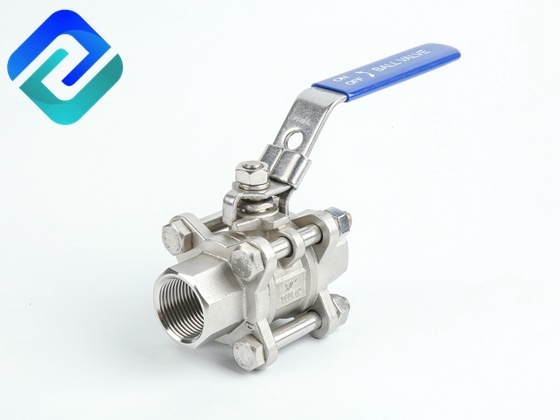

3PC Stainless Steel Ball Valve Full Bore 1000PSI
Size:1/4-4 inch Price:$0.5--S50
Key word:
Classification:
3-PC Ball Valve

Hotline:
3PC Stainless Steel Ball Valve Full Bore 1000PSI
Top
A three piece ball valve is known for its ability to easily be disassembled and reassembled for cleaning. Like our other stainless steel ball valves, the 3 piece comes with female NPT threads on both ends. Three piece ball valves are commonly used in the food industries for sanitary purposes. Our 3-piece ball valves are made with high grade 316 stainless steel, designed with a full port, rated at 1000 PSI, and are WOG (Water, Oil, Gas) ready.


Investment Castings for body and Cap
Internal Entry Blow-Out Proof Stem
Pressure Rating:1000PSI(PN63)
Thread End:ANSI B2.1, BS21,ISO7/1
Length:DIN3202-M3
Working Temperature: -25℃+180℃
Material:CF8M,CF8,CF3M,WCB

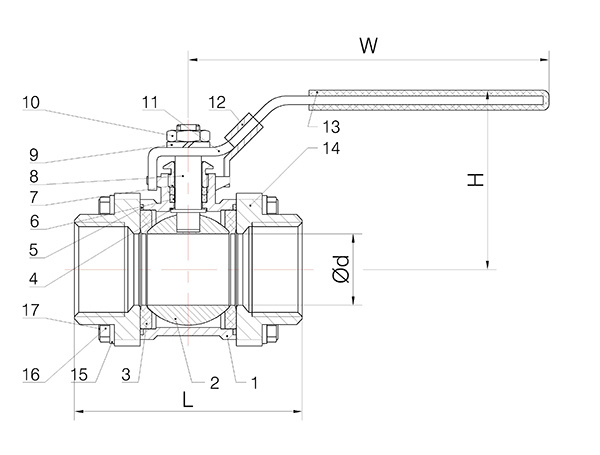

Dimension Table of stainless steel 3PC ball valve:
SIZE |
Φd |
L |
H |
W |
N.M |
KGS |
|
DN6 |
1/4’’ |
11 |
50 |
51 |
105 |
4 |
0.41 |
DN10 |
3/8’’ |
12.5 |
60 |
51 |
105 |
4 |
0.43 |
DN15 |
1/2’’ |
15 |
75 |
53 |
118 |
5 |
0.46 |
DN20 |
3/4’’ |
20 |
80 |
60 |
118 |
8 |
0.72 |
DN25 |
1’’ |
25 |
90 |
75 |
150 |
10 |
1.05 |
DN32 |
1-1/4’’ |
32 |
110 |
80 |
150 |
14 |
1.66 |
DN40 |
1-1/2’’ |
38 |
120 |
88 |
182 |
18 |
2.25 |
DN50 |
2’’ |
50 |
140 |
95 |
182 |
25 |
3.16 |
DN65 |
2-1/2’’ |
65 |
185 |
121 |
254 |
48 |
6.51 |
DN80 |
3’’ |
80 |
205 |
135 |
254 |
75 |
9.61 |
DN100 |
4’’ |
100 |
240 |
158 |
285 |
110 |
16.41 |
Material of each part:(we can make as per your requests for materials)
ITEM |
PART |
MATERIAL |
QTY |
|||
1 |
BODY |
A216-WCB |
A351-CF8 |
A351-CF8M |
1 |
|
2 |
BALL |
304 |
304 |
316 |
1 |
|
3 |
SEAT |
PTFE/RPTFE |
2 |
|||
4 |
THRUST WASHER |
PTFE |
1 |
|||
5 |
GASKET |
PTFE |
2 |
|||
6 |
PACKING |
PTFE |
1 |
|||
7 |
GLAND NUT |
304 |
1 |
|||
8 |
STEM |
304 |
304 |
316 |
1 |
|
9 |
SPRING WASHER |
304 |
1 |
|||
10 |
NUT |
304 |
1 |
|||
11 |
HANDLE |
304 |
1 |
|||
12 |
LOCK |
304 |
1 |
|||
13 |
HANDLE COVER |
PLASTIC |
1 |
|||
14 |
CAP |
A216-WCB |
A351-CF8 |
A351-CF8M |
2 |
|
15 |
SPRING WASHER |
304 |
304 |
304 |
4(6) |
|
16 |
NUT |
304 |
304 |
304 |
4(6) |
|
17 |
BOLT |
304 |
304 |
304 |
4(6) |
