Stainless Steel Mini Ball Valve
这是描述信息
products
这是描述信息

Product details

1/1
Number of views:
1013

Stainless Steel Mini Ball Valve

Retail price
0.0
USD
Market price
0.0
USD
Number of views:
1013
Product serial number
Quantity
-
+
Stock:
1
Product description
Parameters

Stainless Steel Mini Ball Valve



Investment Casting for body and Cap

Internal Entry Blow-Out Proof Stem

Pressure Rating:1000PSI (PN63)

Thread End:ANSI B2.1,BS21,ISO7/1

Working Temperature:-25℃+180℃

Material:CF8M,CF8,CF3M,WCB

Inspection Testing:API 598,EN 12266

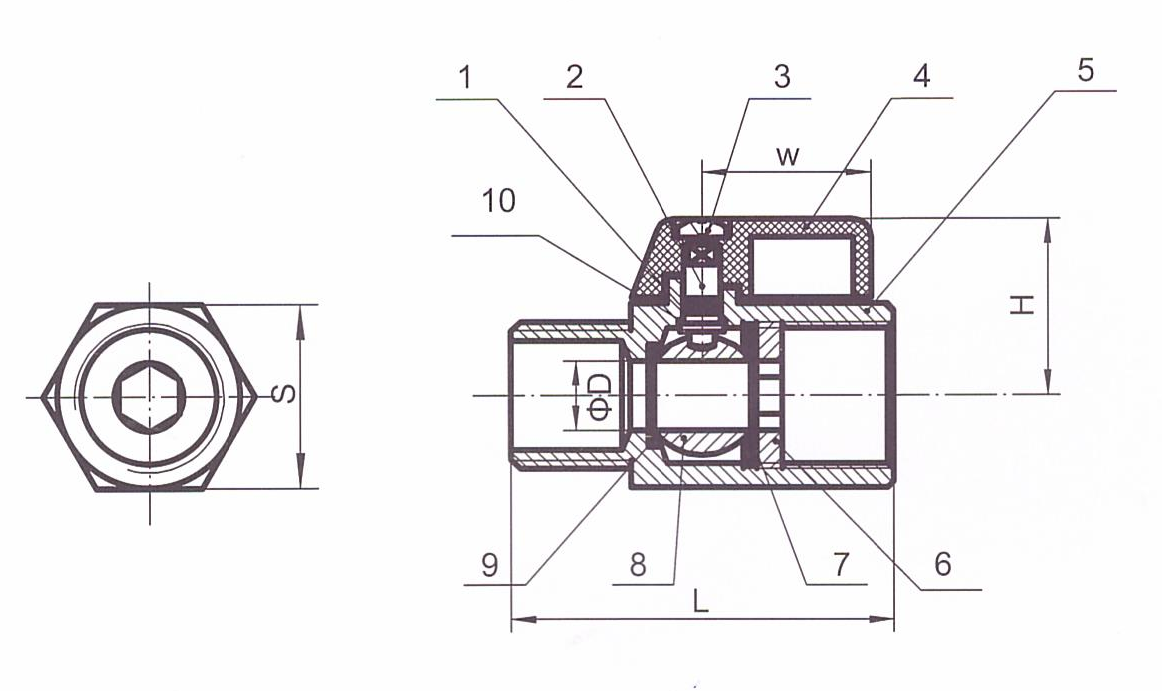

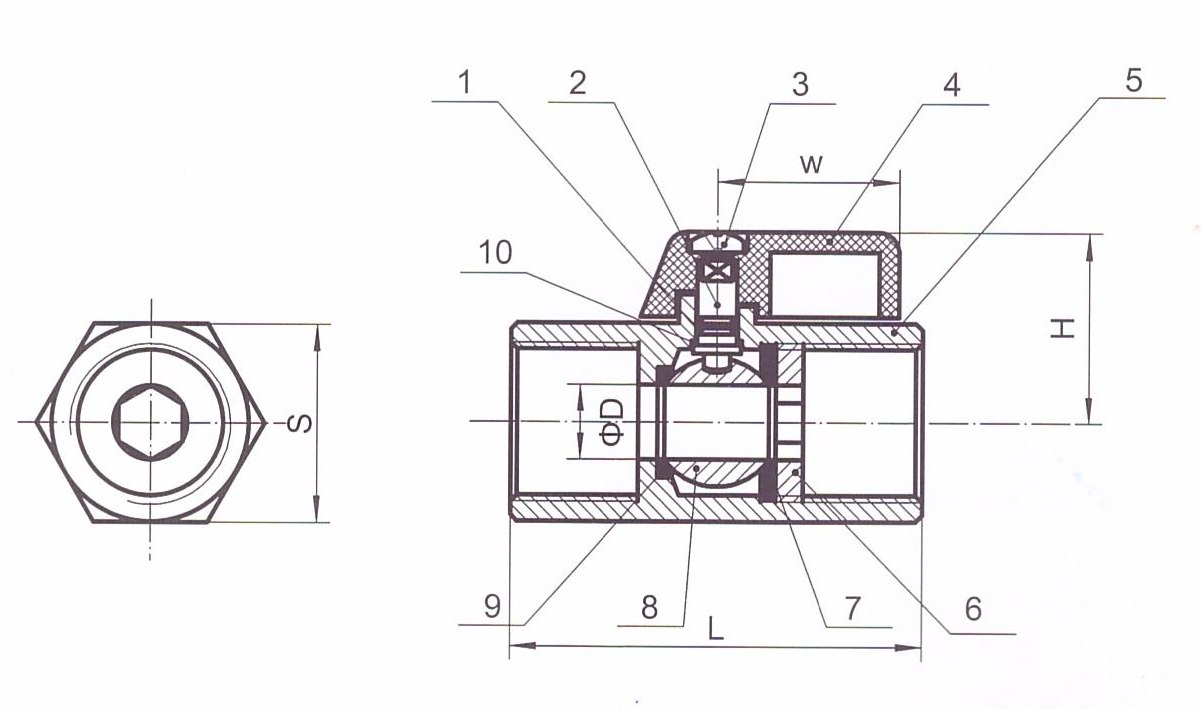

MATERIAL LIST



ITEM

PART

MATERIAL

QTY

1

0-RING

VITON

1

2

STEM

304

316

1

3

BOLT

304

2

4

LEVER

ALUMINUM ALLOY

1

5

BODY

CF8/CF8M

2

6

CAP

CF8/CF8M

1

7

BALL SEAT

PTFE

1

8

BALL

304

316

1

9

BALL SEAT

PTFE

1

10

THRUST WASHER

PTFE

1





DIMENSION TABLE



SIZE

D

L

H

W

S

DN8

1/4”

8.0

39

26

23

21

DN16

3/8”

8.2

42

26.5

23

21

DN15

1/2”

9.2

46

28.5

23

26

DN20

3/4”

12.5

55

32

23

31

DN25

1”

15.5

66

33.5

23

39

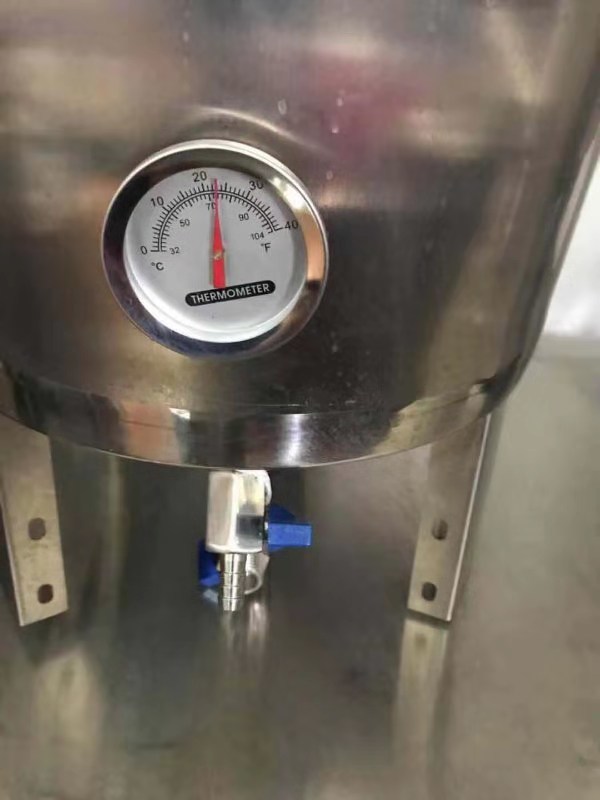

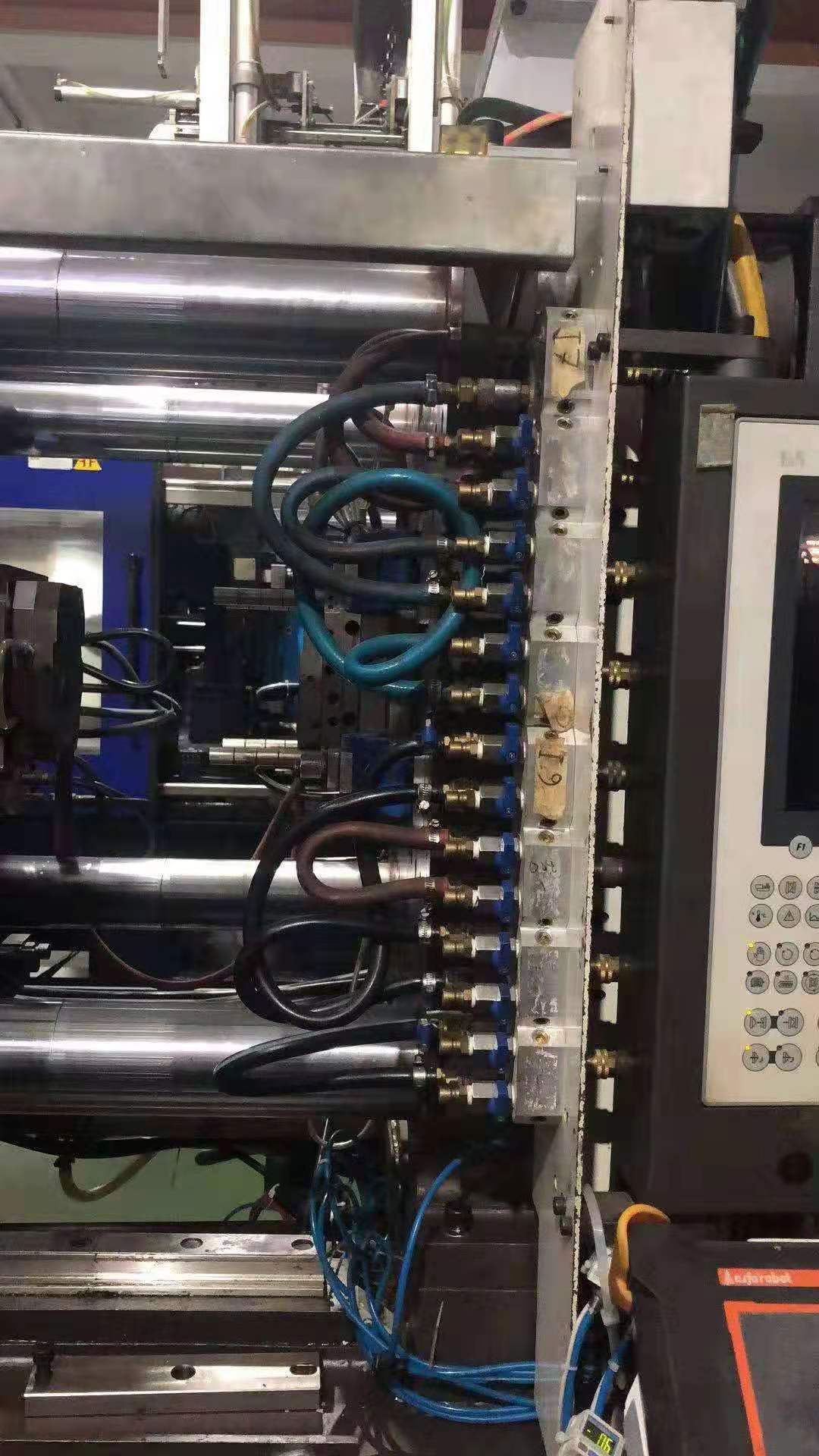

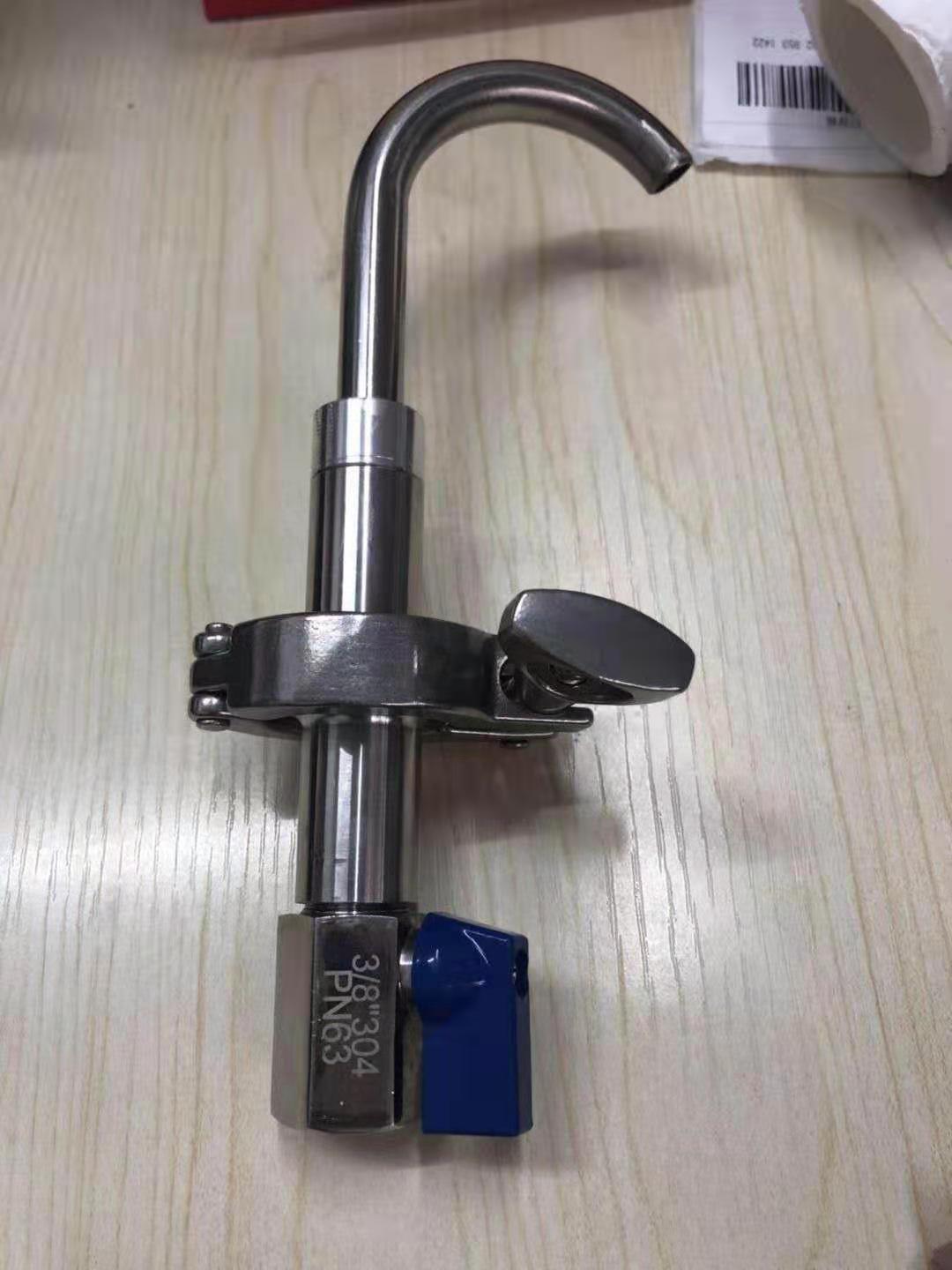

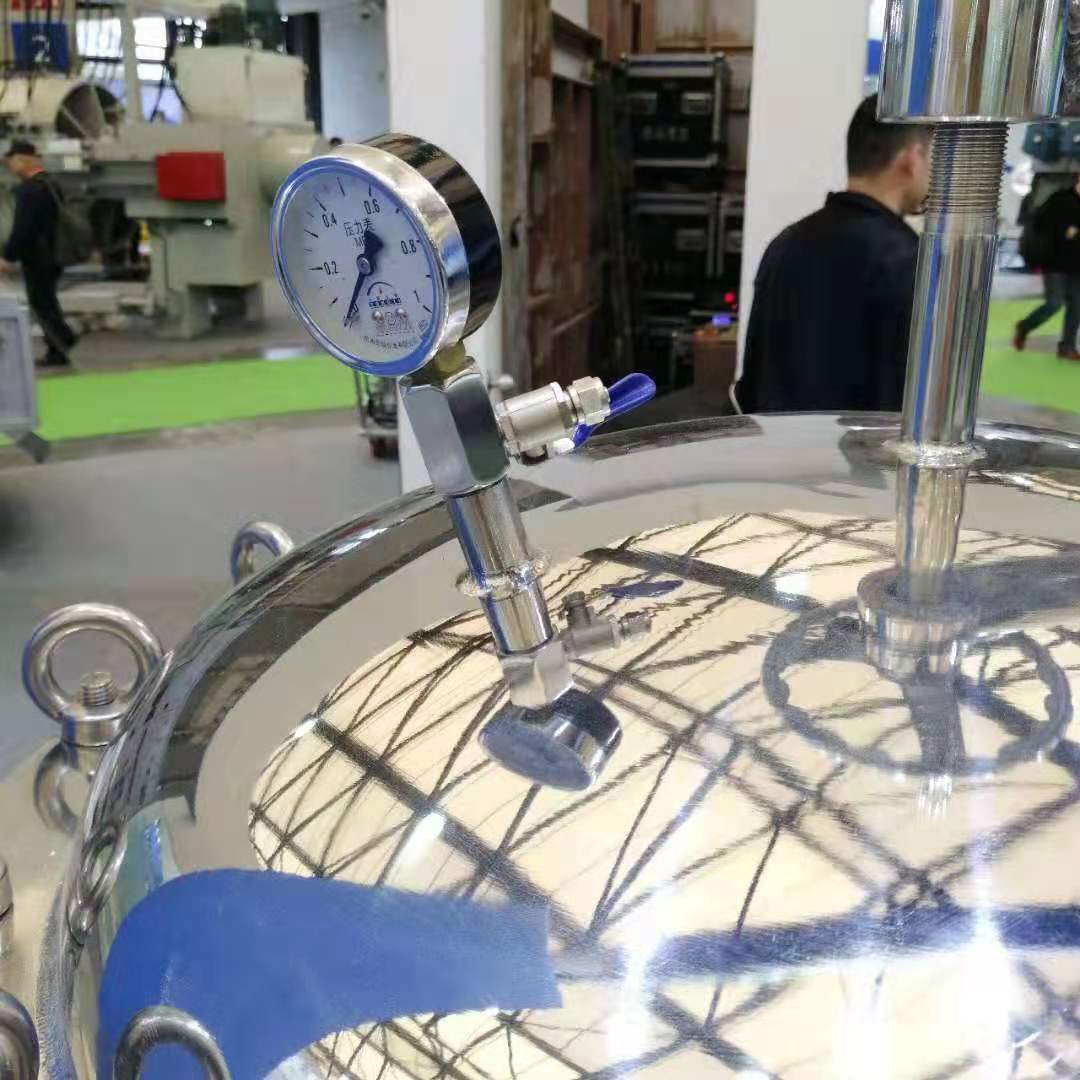

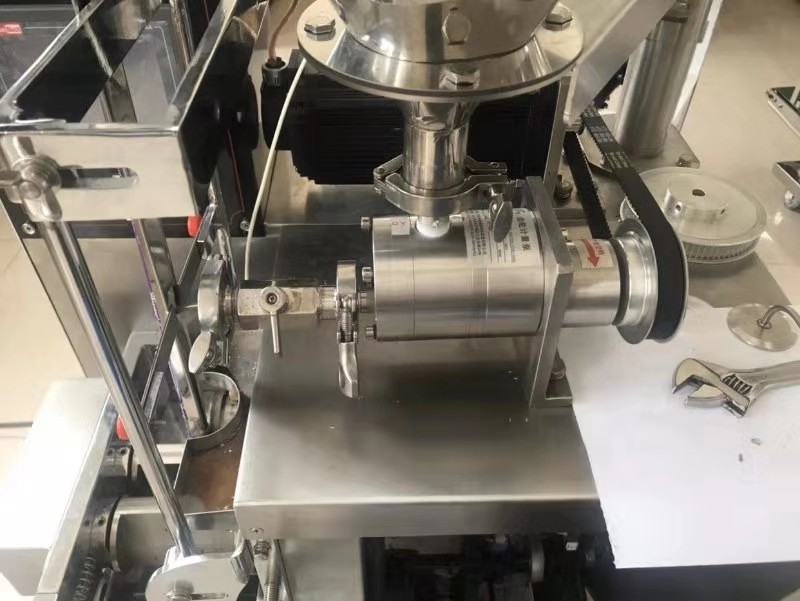

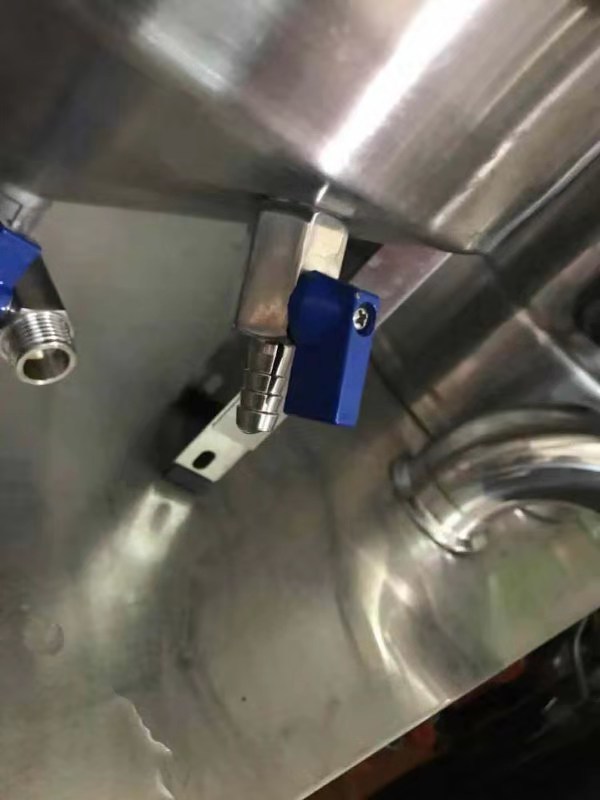

Application of Stainless Steel Mini Ball Valve:
