3PC Flanged End Stainless Steel Ball Valve with ISO5211 Direct Mounting Pad
Retail price
0.0
USD
Market price
0.0
USD
Number of views:
1008
Product serial number
Category
3-PC Ball Valve
Quantity
-
+
Stock:
1
Product description
Parameters
3PC Flanged End Stainless Steel Ball Valve with ISO5211 Direct Mounting Pad
A three piece ball valve is preferred wherever regular cleaning is required. The valve body is composed of 3 separate pieces held together by bolts, which can be easily removed for cleaning and servicing. A unique advantage of the 3 piece valve design is that the ball valve ends can remain threaded into the pipe, while the center section containing the ball can be removed. These 3 piece ball valves have been specifically designed to be easily disassembled, cleaned, and reassembled. 3 piece stainless Steel ball valves also called 3 SS ball valves, are widely used for a variety of sanitary applications that are required for pharmaceutical and food/beverage industries.
- Threaded Ports Female by Female NPT for Standard Connection
- Full Port Valve
- Standard with Blow Out Proof Stem
- Pressure Rated to 1000 PSI Suitable for Standard Applications
- PTFE Seals and Seats Making these Heat and Chemical Resistant
- Sizes available in 1/4" to 4"

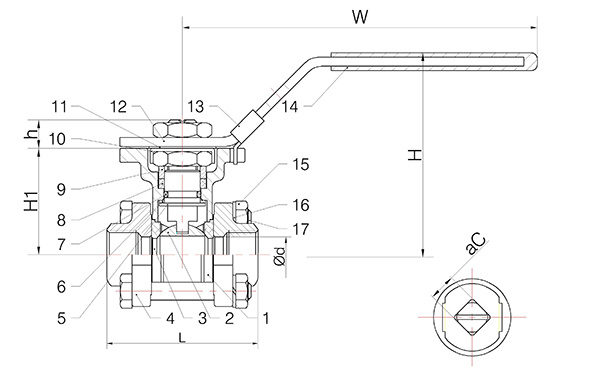

Dimension Table
|
SIZE |
Φd |
L |
H |
W |
H1 |
h/aC |
ΦD |
ISO5211 |
N.M |
KGS |
|
|
DN6 |
1/4’’ |
12.5 |
52 |
60 |
140 |
30 |
9 |
18 |
F03 |
4 |
0.41 |
|
DN10 |
3/8’’ |
12.5 |
52 |
60 |
140 |
30 |
9 |
18 |
F03 |
4 |
0.43 |
|
DN15 |
1/2’’ |
15 |
62 |
68 |
140 |
36.5 |
9 |
18 |
F03/F04 |
5 |
0.55 |
|
DN20 |
3/4’’ |
20 |
72 |
72 |
140 |
40.5 |
9 |
27.2 |
F03/F04 |
8 |
0.70 |
|
DN25 |
1’’ |
25 |
79 |
86 |
160 |
48.5 |
11 |
31 |
F04/F05 |
10 |
0.98 |
|
DN32 |
1-1/4’’ |
32 |
94 |
94 |
160 |
53 |
11 |
42.8 |
F04/F05 |
14 |
1.56 |
|
DN40 |
1-1/2’’ |
38 |
103 |
101 |
185 |
61.5 |
14 |
48.6 |
F05/F07 |
18 |
2.19 |
|
DN50 |
2’’ |
50 |
126 |
110 |
185 |
70.5 |
14 |
60.5 |
F05/F07 |
25 |
3.18 |
|
DN65 |
2-1/2’’ |
65 |
158 |
143 |
230 |
95.5 |
17 |
76.3 |
F07/F10 |
48 |
6.23 |
|
DN80 |
3’’ |
76 |
179 |
157 |
230 |
109 |
17 |
90 |
F07/F10 |
75 |
8.31 |
|
DN100 |
4’’ |
94 |
213 |
182 |
320 |
131 |
22 |
116 |
F07/F10 |
110 |
14.36 |
Material list:
|
ITEM |
PART |
MATERIAL |
QTY |
|||
|
1 |
BODY |
A216-WCB |
A351-CF8 |
A351-CF8M |
1 |
|
|
2 |
BALL |
304 |
304 |
316 |
1 |
|
|
3 |
SEAT |
PTFE/RPTFE |
2 |
|||
|
4 |
CAP |
A216-WCB |
A351-CF8 |
A351-CF8M |
1 |
|
|
5 |
STEM |
304 |
304 |
304 |
2 |
|
|
6 |
THRUST WASHER |
PTFE |
1 |
|||
|
7 |
O-RING |
VITON |
1 |
|||
|
8 |
PACKING |
PTFE |
1 |
|||
|
9 |
GLAND NUT |
304 |
1 |
|||
|
10 |
STOPPER NUT |
304 |
1 |
|||
|
11 |
PLATE |
304 |
1 |
|||
|
12 |
HANDLE |
304 |
1 |
|||
|
13 |
LOCK |
304 |
1 |
|||
|
14 |
HANDLE COVER |
PLASTIC |
2 |
|||
|
15 |
NUT |
304 |
304 |
304 |
4(6) |
|
|
16 |
SPRING WASHER |
304 |
4(6) |
|||
|
17 |
BOLT |
304 |
304 |
304 |
4(6) |
|
|
18 |
STOP PIN |
304 |
304 |
304 |
1 |
|
