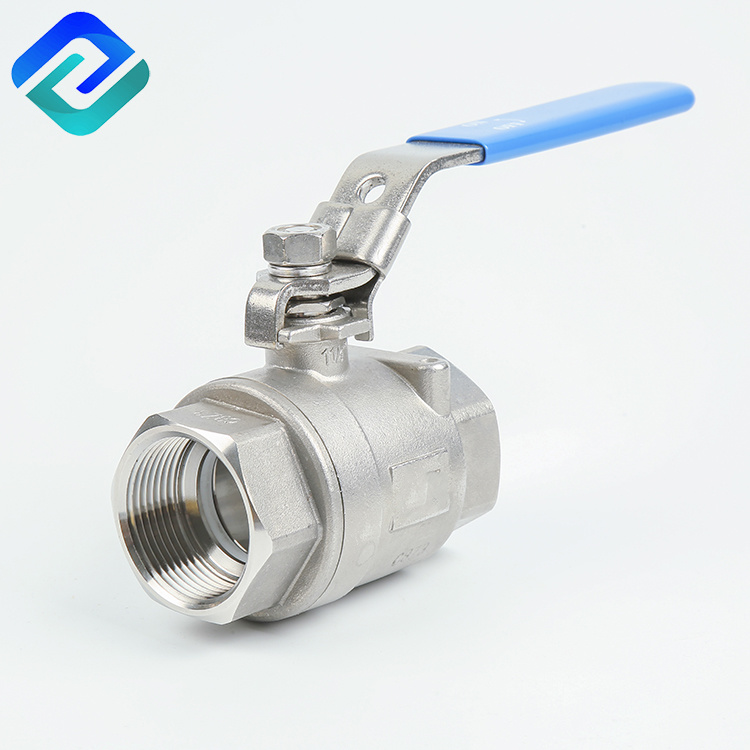

The 2 piece stainless steel ball valve is probably the most widely used ball valve. The 2 piece ball valve will open or shut off flow on most liquids and gases quickly and easily and is suitable for just about any application where a simple on/off action is needed. Flow rate can also be controlled by partially opening or closing the valve to various degrees. Also referred to as a two-way ball valve, since it allows flow in any direction straight through from inlet to outlet. Being threaded ball valves they are quick to install and easy to use, requiring no tooling for installation. The two piece ball valve is the best priced full port ball valve (full bore), allowing the inside diameter of the pipe to remain constant and unrestricted. This means that the 2 piece SS ball valve has no pressure drop and keeps the flow rate high.

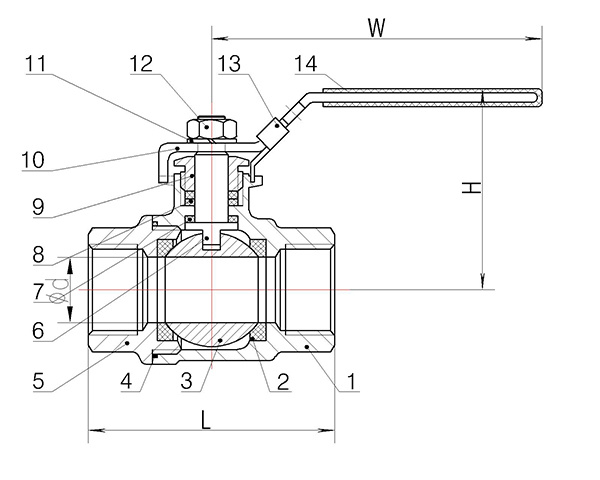

Material of stainless steel 2PC ball valve
ITEM |
PART |
MATERIAL |
QTY |
||
1 |
BODY |
A216-WCB |
A351-CF8 |
A351-CF8M |
1 |
2 |
SEAT |
PTFE/RPTFE |
2 |
||
3 |
BALL |
304 |
304 |
316 |
1 |
4 |
GASKET |
PTFE |
1 |
||
5 |
CAP |
A216-WCB |
A351-CF8 |
A351-CF8M |
1 |
6 |
STEM |
304 |
304 |
316 |
1 |
7 |
THRUST WASHER |
PTFE |
1 |
||
8 |
PACKING |
PTFE |
1 |
||
9 |
GLAND NUT |
304 |
304 |
304 |
1 |
10 |
HANDLE |
304 |
304 |
304 |
1 |
11 |
SPRING WASHER |
304 |
304 |
304 |
1 |
12 |
NUT |
304 |
304 |
304 |
1 |
13 |
LOCK |
304 |
304 |
304 |
1 |
14 |
HANDLE COVER |
PLASTIC |
1 |
Dimention of 2PC ball valve:
SIZE |
Φ d |
L |
H |
W |
N.M |
KGS |
|
DN6 |
1/4” |
12.5 |
50 |
49 |
106 |
4 |
0.19 |
DN10 |
3/8” |
12.5 |
50 |
49 |
106 |
4 |
0.19 |
DN15 |
1/2” |
15 |
53 |
52 |
106 |
5 |
0.25 |
DN20 |
3/4” |
20 |
66 |
58 |
116 |
8 |
0.37 |
DN25 |
1” |
25 |
73 |
73 |
148 |
10 |
0.58 |
DN32 |
1-1/4” |
32 |
85 |
79 |
148 |
10 |
0.90 |
DN40 |
1-1/2” |
38 |
94 |
84 |
182 |
25 |
1.19 |
DN50 |
2” |
50 |
112 |
95 |
182 |
40 |
1.73 |
DN65 |
2-1/2” |
65 |
147 |
127 |
251 |
48 |
3.84 |
DN80 |
3” |
76 |
172 |
136 |
251 |
80 |
5.71 |
DN100 |
4” |
94 |
222 |
158 |
283 |
103 |
10.70 |
Function Description:
Ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball (called a "floating ball") to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.
Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse. These qualities make them an excellent choice for shutoff applications, where they are often preferred to gate and globe valves, but they lack their fine control in throttling applications.

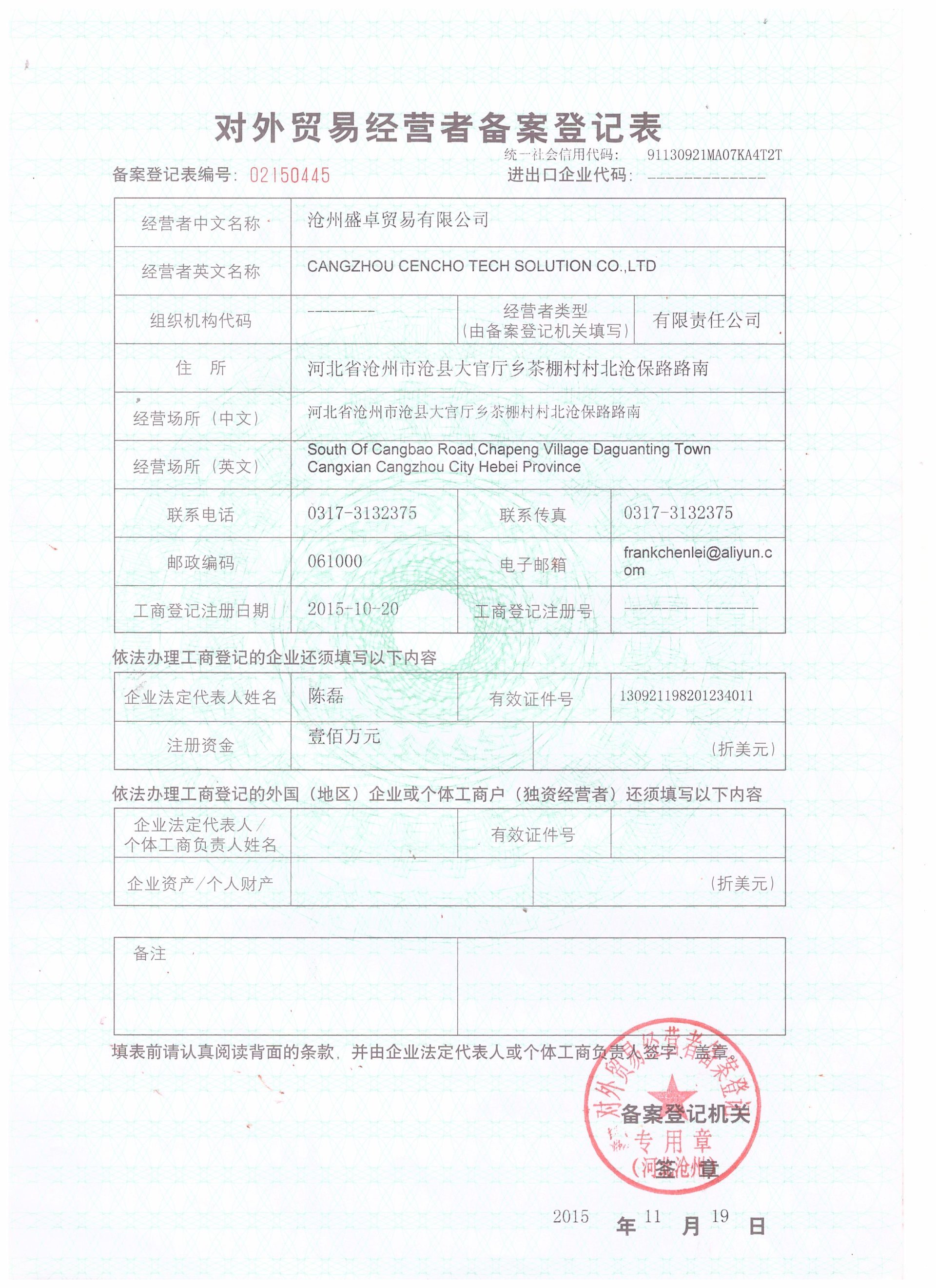

Certificate:

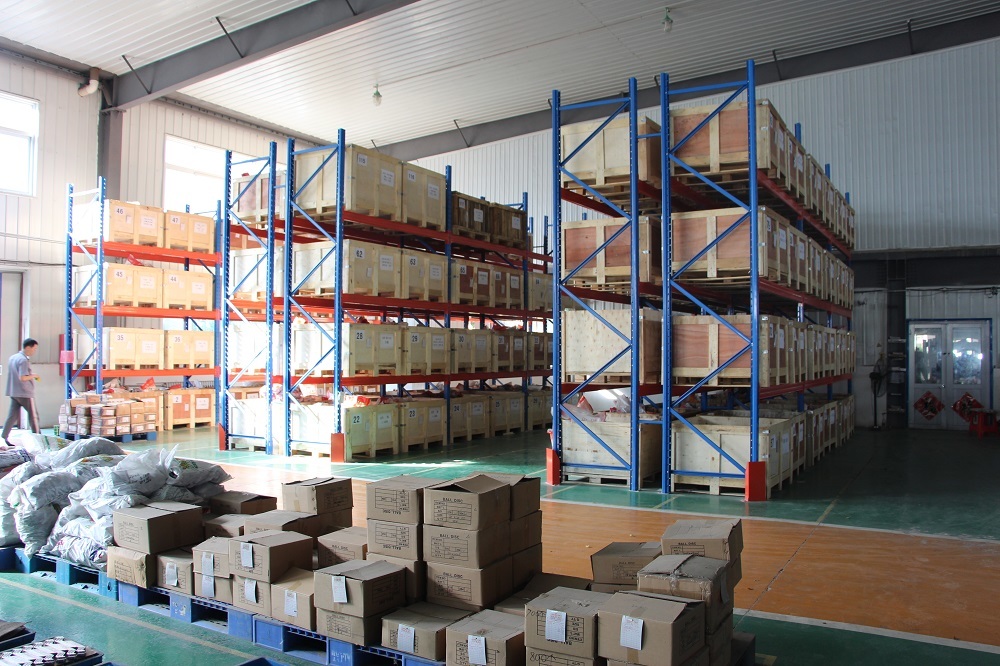

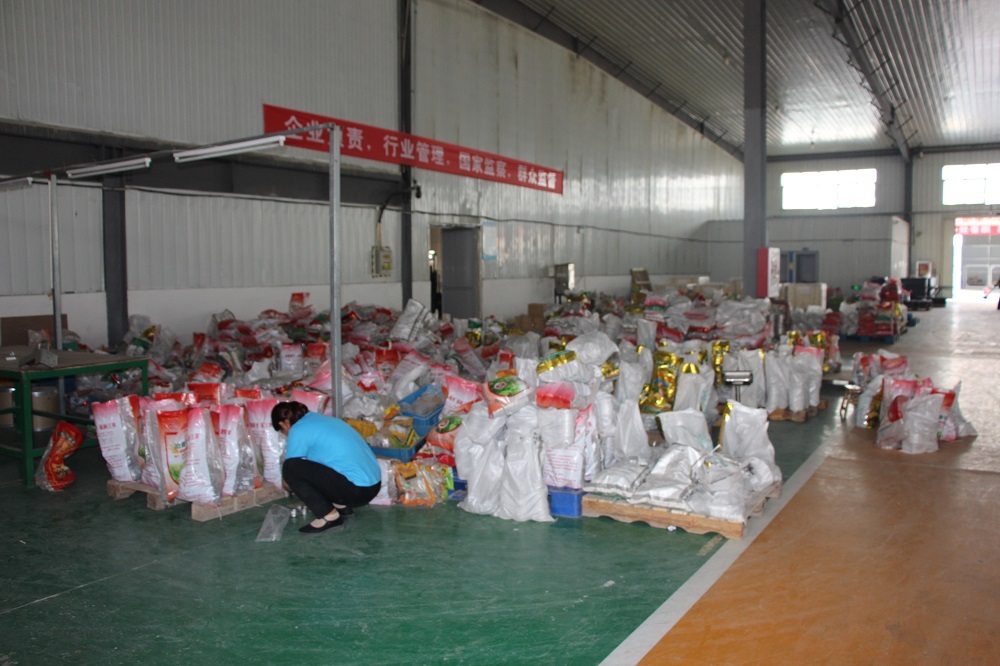

Package:
Our customers:
FAQ:
Q:How long have the factory been established?
A: More than 19 years.
Q: How much is our minimum order quantity?
A: Our minimun quantity is 1 Piece.
Q:Are you a trading company or manufacturer?
A:We are a manufacturer and we have our own casting and machining factory.
Q:Can you print our COMPANY LOGO on parts and packages?
A:Yes, we can.
Q: What's your delivery date?
A: It is up to order quantity.Generally delivery date is 45 days.
Q: What is the price of the product?
A: Our prices are based on the size and type of material, if you can give me the information, then we can give you an estimated price is for reference only.
