2PC 304 Ball Valves Screw Ends Full Port 1000WOG

Port Size:1/4" - 4",DN8- DN100 Material: ASTM A351 CF8M,CF8,CF3M,SS316,SS304 ASTM A216-WCB Working medium: Water, Oil, Gas, Acid, Steam,etc Price: $2.00 - $200.00 / Pieces
Retail price
0.0
USD
Market price
0.0
USD
Number of views:
1012
Product serial number
Quantity
-
+
Stock:
1
Product description
Parameters

2PC 304 Ball Valves Screw Ends Full Port 1000WOG

2PC 304 Ball Valves are perfect for applications where tight space is a concern. These Compact 2 piece ball valves have a slightly shorter body and handle compared to the standard version. Being Slightly lighter in weight they also make for a good budget alternative. They have the same Specs as the Standard Ball Valve (1000 PSI WOG). Available in the better priced Stainless Steel 304.



Features:

1)  Blow-out proof stem

2)  Investment Casting Body

3)  Pressure Blance Hole in Ball Slot

4)  Full Bore

5)  Threaded type: NPT,PT,BSP,BSPP,BSPT,DIN,Rc,Rp is available

6)  Locking device is available

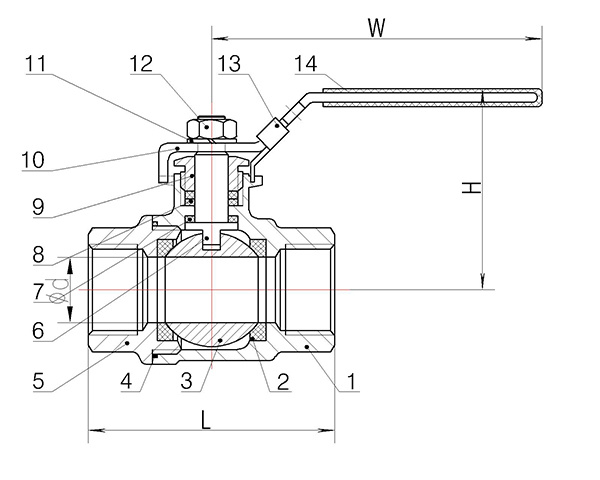

Size of 2-PC ball valve:



SIZE

Φ d

L

H

W

N.M

KGS

DN6

1/4”

12.5

50

49

106

4

0.19

DN10

3/8”

12.5

50

49

106

4

0.19

DN15

1/2”

15

56

52

106

5

0.27

DN20

3/4”

20

66

57

115

8

0.40

DN25

1”

25

80

73

148

10

0.67

DN32

1-1/4”

32

91

79

148

14

1.00

DN40

1-1/2”

38

99

84

182

24

1.28

DN50

2”

50

122

97

182

40

2.08

DN65

2-1/2”

65

147

127

251

48

3.84

DN80

3”

76

172

136

251

80

5.71

DN100

4”

94

222

158

283

103

10.70



Material list of 2-PC ball valve:



ITEM

PART

MATERIAL

QTY

1

BODY

A216-WCB

A351-CF8

A351-CF8M

1

2

SEAT

PTFE/RPTFE

2

3

BALL

304

304

316

1

4

GASKET

PTFE

1

5

CAP

A216-WCB

A351-CF8

A351-CF8M

1

6

STEM

304

304

316

1

7

THRUST WASHER

PTFE

1

8

PACKING

PTFE

1

9

GLAND NUT

304

304

304

1

10

HANDLE

304

304

304

1

11

SPRING WASHER

304

304

304

1

12

NUT

304

304

304

1

13

LOCK

304

304

304

1

14

HANDLE COVER

PLASTIC

1

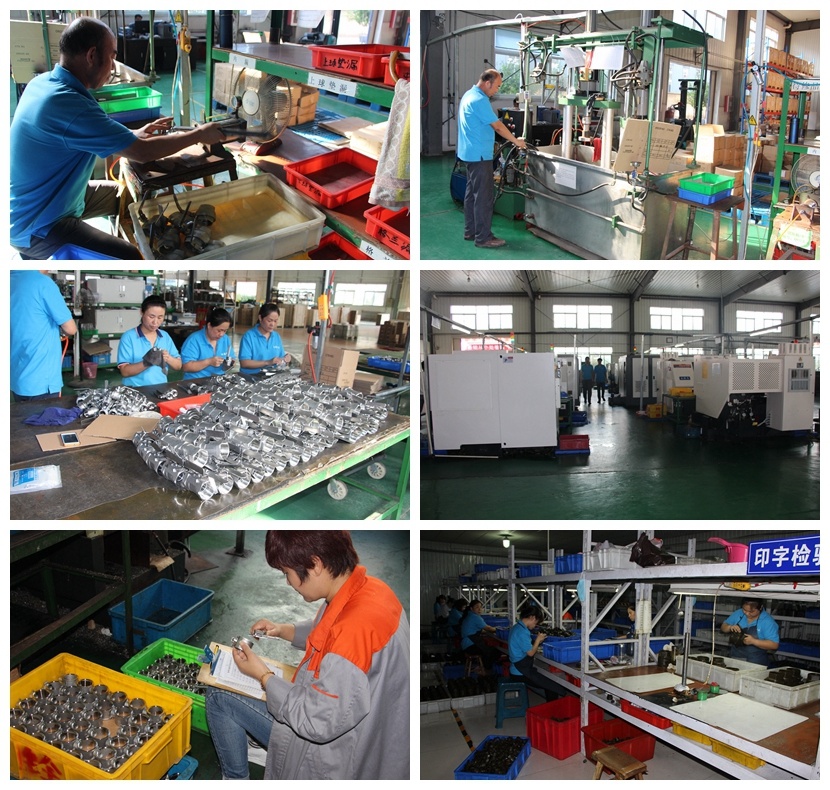

Workshop:
